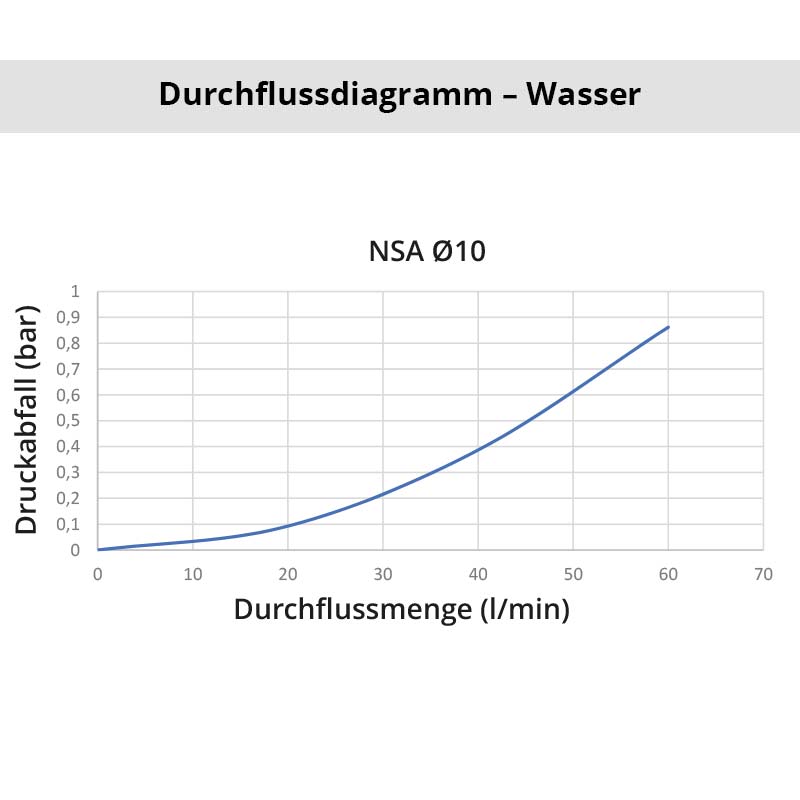

The NSA are dry-break quick couplings with FlatFace valves. Minimal fluid loss when uncoupling. NSA couplings exhibit minimal pressure drop and minimal air and dust entrapment during the coupling process.
| Series: | NSA |
| Seal: | EPDM |
| Bore in mm: | 10 |
| Advantages: | Low weight due to aluminum construction. Leak-free. Push-Lok connection for time-saving assembly. |
| Working pressure: | max. 20 bar |
| Working temperature: | -50°C to +175°C (fluorosilicone) depending on the flow medium. Special seals on request. |
| Shut-Off: | Plug Dry-Break (double shut-off) |
| Connection: | for Parker plug-in hose 10mm |
| Connection description: | for Parker plug-in hose 10mm |
| Material: | Anodized aluminium |
| Seal description: | Ethylene-propylene-diene rubber |
| Coding: | No |
| Weight in kg: | 0,047 |
| Self-venting coupling: | No |
| Safety locking system: | No |
| Single-hand operation: | Yes |
| Two-hand operation: | No |
| Ultra-FLO-valve: | No |
| Water-resistant: | Yes |
| Flat-sealing: | Yes |
| Suitable breath / respiratory protection: | No |
| Pressure eliminator: | No |
| Hydraulics: | Yes |
| Pneumatics: | No |
| Mould coupling: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
