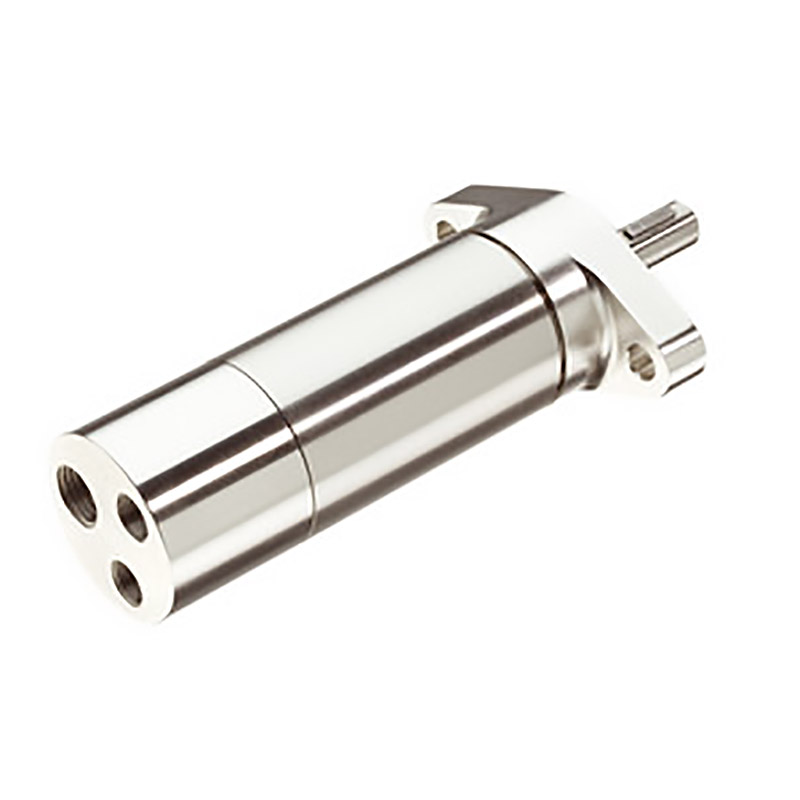

Air motors 0,13 kW

Air motors, reversible, speed under load 200 - 2.300 rpm, torque 0,54 - 6,2 Nm, start torque 0,81 - 9,3 Nm

Price on request

Available, delivery time:

Product name	Idling speed rpm	Torque in Nm	Speed under load in rpm	Non-lubricated	Start torque in Nm
MUD 9-200 Air motor	400	6,2	200	No	9,3
MUD 9-330 Air motor	660	3,8	330	No	5,6

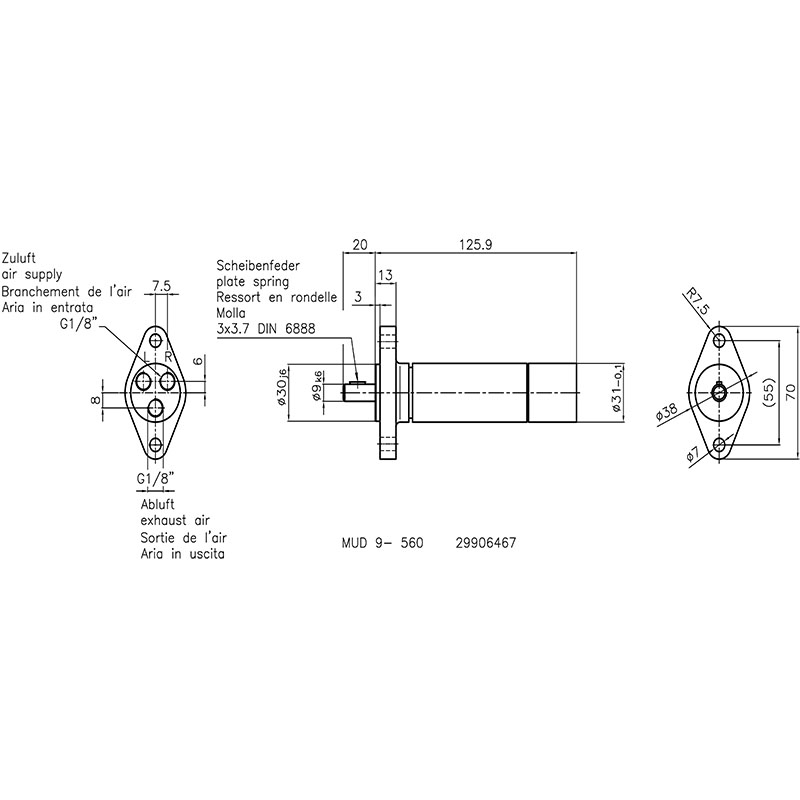

MUD 9-560 Air motor	1120	2,2	560	No	3,3
MUD 9-1300 Air motor	2600	0,95	1300	No	1,4
MUD 9-2300 Air motor	4600	0,54	2300	No	0,81
MUD 9-165 F55 Air motor	220	-	-	No	-
MUD 9-200 F55 Air motor	400	6,2	200	No	9,3
MUD 9-330 F55 Air motor	660	3,8	330	No	5,6
MUD 9-560 F55 Air motor	1120	2,2	560	No	3,3
MUD 9-1300 F55 Air motor	2600	0,95	1300	No	1,4
MUD 9-2300 F55 Air motor	4600	0,54	2300	No	0,81

Product information "Air motors 0,13 kW"

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section. Reversible motors can be used rotating clockwise and anti clockwise. It is very important that if the air motor is pressurized with connection turning the air motor left, the connection turning the air motor right is vented properly (and vize versa).
