Air motors 0,16 kW

Air motors, reversible, speed under load 140 - 6.500 rpm, torque 0,24 - 11,0 Nm, start torque 0,36 - 16,0 Nm

Price on request

Available, delivery time:

Product name	Idling speed rpm	Torque in Nm	Speed under load in rpm	Non-lubricated	Start torque in Nm
MUD 16-140 Air motor	280	11	140	Yes	16
MUD 16-240 Air motor	480	6,7	240	Yes	10
MUD 16-310 Air motor	620	5	310	Yes	7,5
MUD 16-650 Air motor	1300	2,4	650	Yes	3,6
MUD 16-1050 Air motor	2100	1,5	1050	Yes	2,3
MUD 16-1400 Air motor	2800	1,1	1400	Yes	1,7
MUD 16-6500 Air motor	13000	0,24	6500	Yes	0,36
MUD 16-140 F55 Air motor	280	11	140	Yes	16

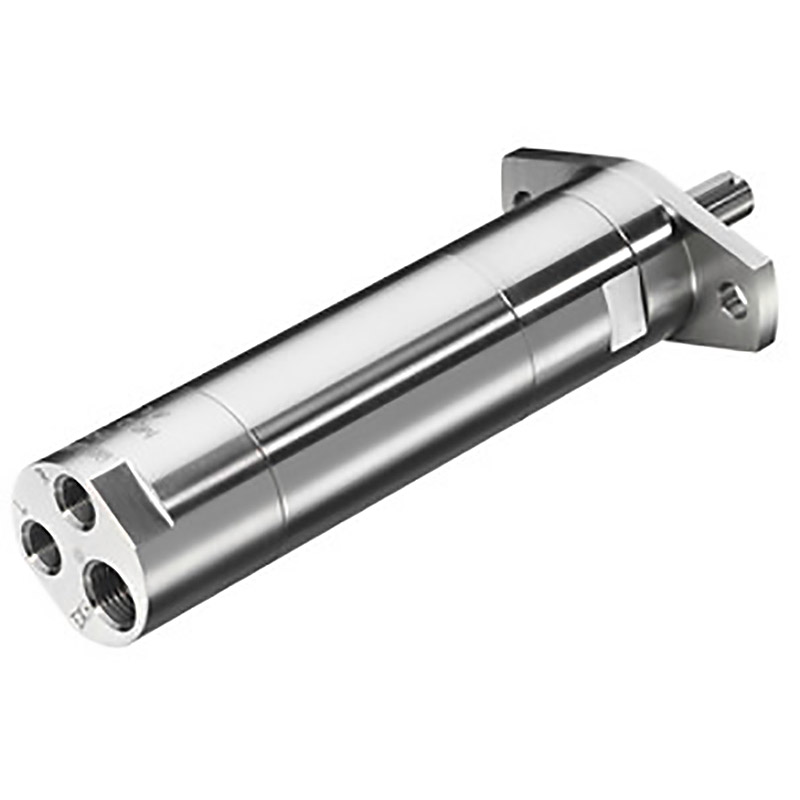

MUD 16-240 F55 Air motor	480	6,7	240	Yes	10
MUD 16-310 F55 Air motor	620	5	310	Yes	7,5
MUD 16-650 F55 Air motor	1300	2,4	650	Yes	3,6
MUD 16-1050 F55 Air motor	2100	1,5	1050	Yes	2,3
MUD 16-1400 F55 Air motor	2800	1,1	1400	Yes	1,7
MUD 16-6500 F55 Air motor	13000	0,24	6500	Yes	0,36

Product information "Air motors 0,16 kW"

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section. Reversible motors can be used rotating clockwise and anti clockwise. It is very important that if the air motor is pressurized with connection turning the air motor left, the connection turning the air motor right is vented properly (and vize versa).
