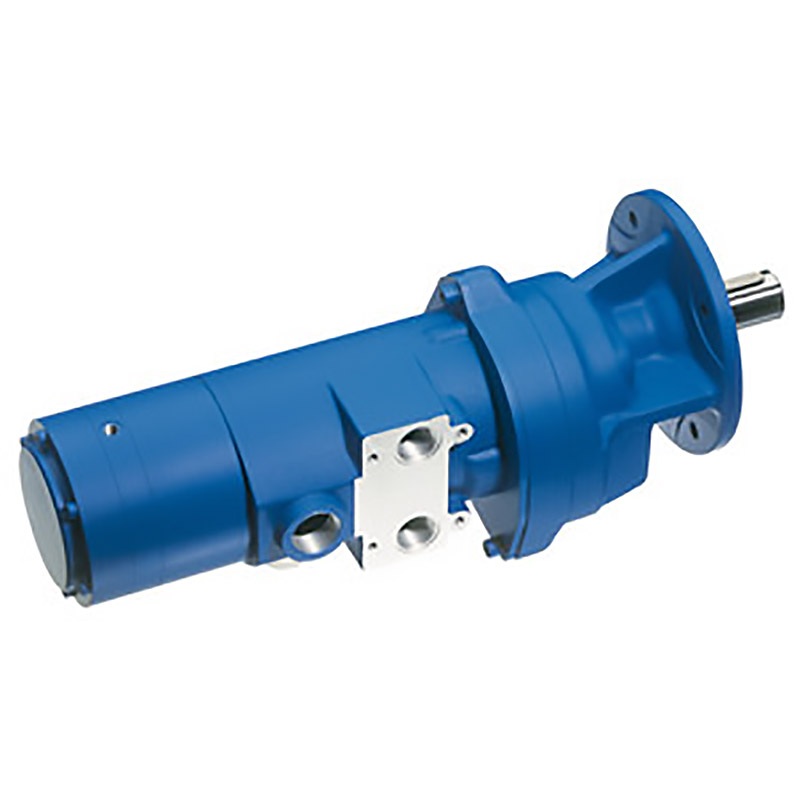

MUB 400-125 Air motor
Air motor, reversible, speed under load 125 rpm, torque 225 Nm, holding load of brake 405 Nm
Price on request
Available in 20 days, transport time 1-2 working days
Product information "MUB 400-125 Air motor"
The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section. The robust teethed gears of the motors from 2,2 to 4,4 kW ensure the necessary reduction for the required speed under load.
| Resistant to stalling: | Yes |
|---|---|
| Item number: | 29701915 |
| ATEX available: | Yes |
| Brake: | Yes |
| Torque in Nm: | 225 |
| Maximum torque in Nm: | 450 |
| Direction of rotation: | Reversible |
| Weight in kg: | 22,5 |
| Holding load of brake: | 405 |
| Torque in Nm: | 225 |
| Speed under load in rpm: | 125 |
| Idling speed rpm: | 250 |
| Power in kW: | 2,9 |
| Air consumption in l/s: | 60 |
| Material: | Stainless steel |
| Non-lubricated: | No |
| Start torque in Nm: | 338 |
| Shaft load Fa max. in N: | 2300 |
| Shaft load Fr max. in N: | 3500 |
| Hose Inner diameter in mm: | 19 |
|---|
