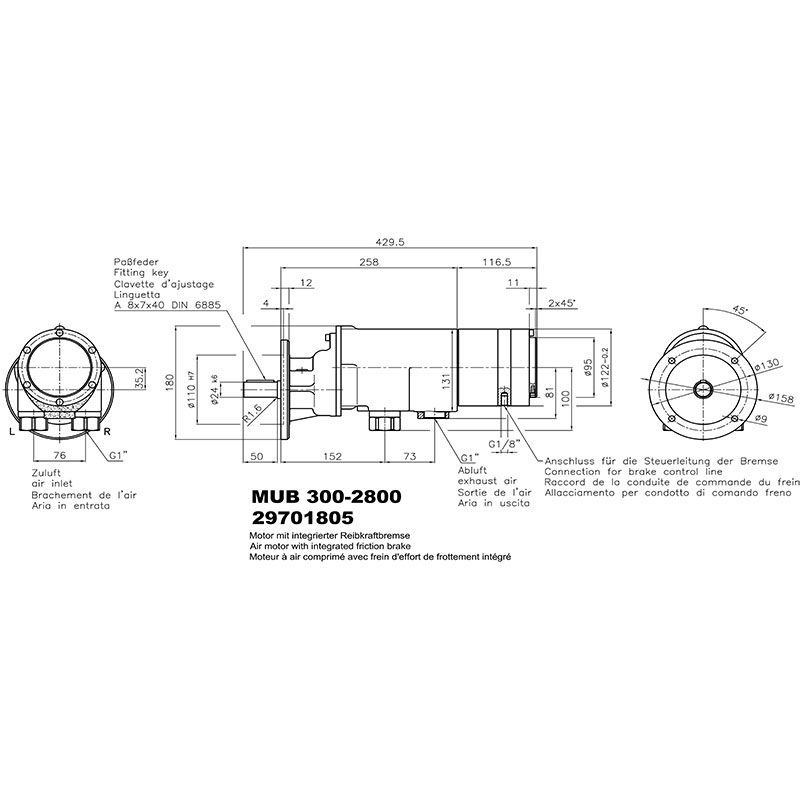

MUB 300-2800 Air motor

Air motor, reversible, speed under load 2800 rpm, torque 7,5 Nm, holding load of brake 15 Nm

Price on request

Available in 20 days, transport time 1-2 working days

Product information "MUB 300-2800 Air motor"

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section. The robust teethed gears of the motors from 2,2 to 4,4 kW ensure the necessary reduction for the required speed under load.

Resistant to stalling:	Yes
Item number:	29701805
ATEX available:	Yes
Brake:	Yes
Torque in Nm:	7,5
Maximum torque in Nm:	15
Direction of rotation:	Reversible
Weight in kg:	16,5
Holding load of brake:	15
Torque in Nm:	7,5
Speed under load in rpm:	2800
Idling speed rpm:	5600
Power in kW:	2,2
Air consumption in l/s:	47
Material:	Stainless steel
Non-lubricated:	No
Start torque in Nm:	11
Shaft load Fa max. in N:	2300
Shaft load Fr max. in N:	2400

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
