The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section. The robust teethed gears of the motors from 2,2 to 4,4 kW ensure the necessary reduction for the required speed under load.
| Speed under load in rpm: | 75 |
| Torque in Nm: | 282 |
| Start torque in Nm: | 423 |
| Idling speed rpm: | 150 |
| Non-lubricated: | No |
| Torque in Nm: | 282 |
| Power in kW: | 2,2 |
| Maximum torque in Nm: | 564 |
| Air consumption in l/s: | 47 |
| Shaft load Fr max. in N: | 3500 |
| Shaft load Fa max. in N: | 2300 |
| Direction of rotation: | Reversible |
| Resistant to stalling: | Yes |
| ATEX available: | Yes |
| Brake: | No |
| Material: | Stainless steel |
| Weight in kg: | 16 |
| Item number: | 60036335 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

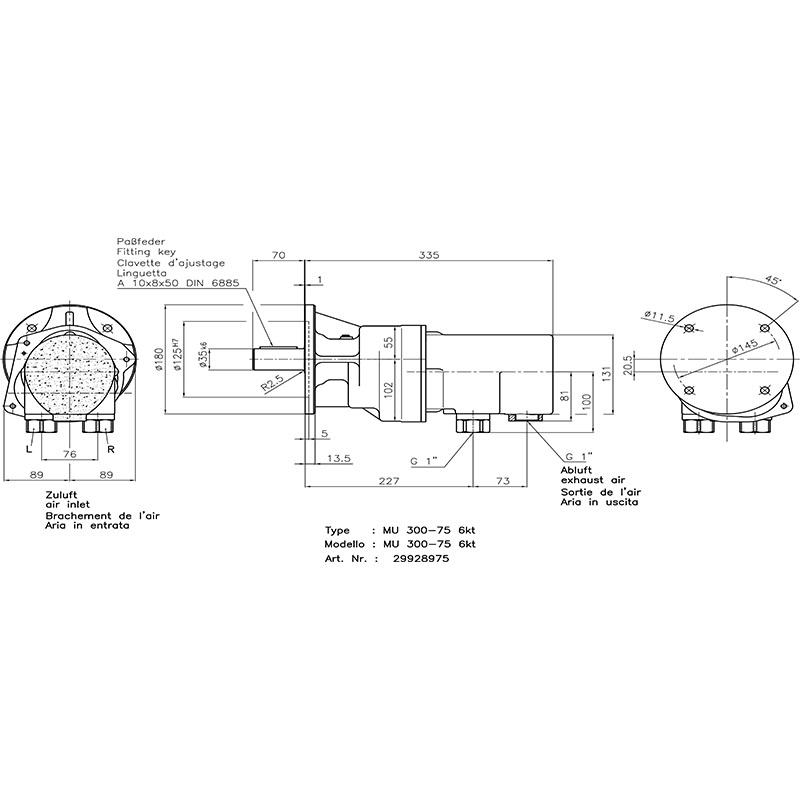

3D Modell
