Air motors 0,38 kW 3/8"

Air motors, rotating clockwise, speed under load 160 - 2.600 rpm, torque 1,40 - 23,0 Nm, start torque 2,20 - 35,0 Nm

Price on request

Available, delivery time:

Product name	Idling speed rpm	Torque in Nm	Speed under load in rpm	Non-lubricated	Start torque in Nm
MRD 38-160 3/8'' Air motor	320	23	160	Yes	35
MRD 38-260 3/8'' Air motor	520	14	260	Yes	21
MRD 38-320 3/8'' Air motor	640	12	320	Yes	17
MRD 38-580 3/8'' Air motor	1160	6,4	580	Yes	9,6
MRD 38-1180 3/8'' Air motor	2360	3,1	1180	Yes	4,7
MRD 38-1460 3/8'' Air motor	2920	2,6	1460	Yes	3,8
MRD 38-2600 3/8'' Air motor	5200	1,4	2600	Yes	2,2
MRD 38-160 3/8'' F54 Air motor	320	23	160	Yes	35
MRD 38-260 3/8'' F54 Air motor	520	14	260	Yes	21
MRD 38-320 3/8'' F54 Air motor	640	12	320	Yes	17
MRD 38-580 3/8'' F54 Air motor	1160	6,4	580	Yes	9,6

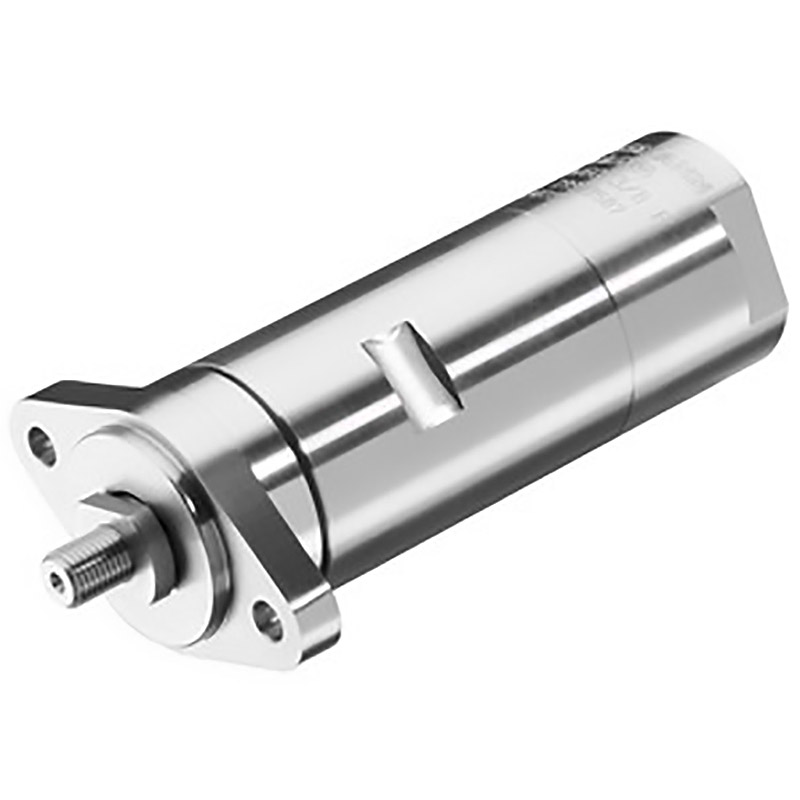

MRD 38-1180 3/8'' F54 Air motor	2360	3,1	1180	Yes	4,7
MRD 38-1460 3/8'' F54 Air motor	2920	2,6	1460	Yes	3,8
MRD 38-2600 3/8'' F54 Air motor	5200	1,4	2600	Yes	2,2

Product information "Air motors 0,38 kW 3/8""

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section.
