Air motors 0,25 kW

To be able to use maku Industrie GmbH & Co. KG in full range, we recommend activating Javascript in your browser.

Air motors, rotating clockwise, speed under load 235 - 9.600 rpm, torque 0,25 - 10,0 Nm, start torque 0,38 - 15,0 Nm

Product name	Speed under load in rpm	Torque in Nm	Start torque in Nm	Idling speed rpm	Non-lubricated	Torque in Nm
MRD 25-235 Air motor	235	10	15	470	Yes	10
MRD 25-380 Air motor	380	6	9	760	Yes	6
MRD 25-535 Air motor	535	4,3	6,5	1070	Yes	4,3
MRD 25-1040 Air motor	1040	2,4	3,6	2080	Yes	2,4
MRD 25-1650 Air motor	1650	1,5	2,3	3300	Yes	1,5
MRD 25-2200 Air motor	2200	1,1	1,7	4400	Yes	1,1
MRD 25-9600 Air motor	9600	0,25	0,38	19200	Yes	0,25
MRD 25-235 F55 Air motor	235	10	15	470	Yes	10
MRD 25-380 F55 Air motor	380	6	9	760	Yes	6
MRD 25-535 F55 Air motor	535	4,3	6,5	1070	Yes	4,3

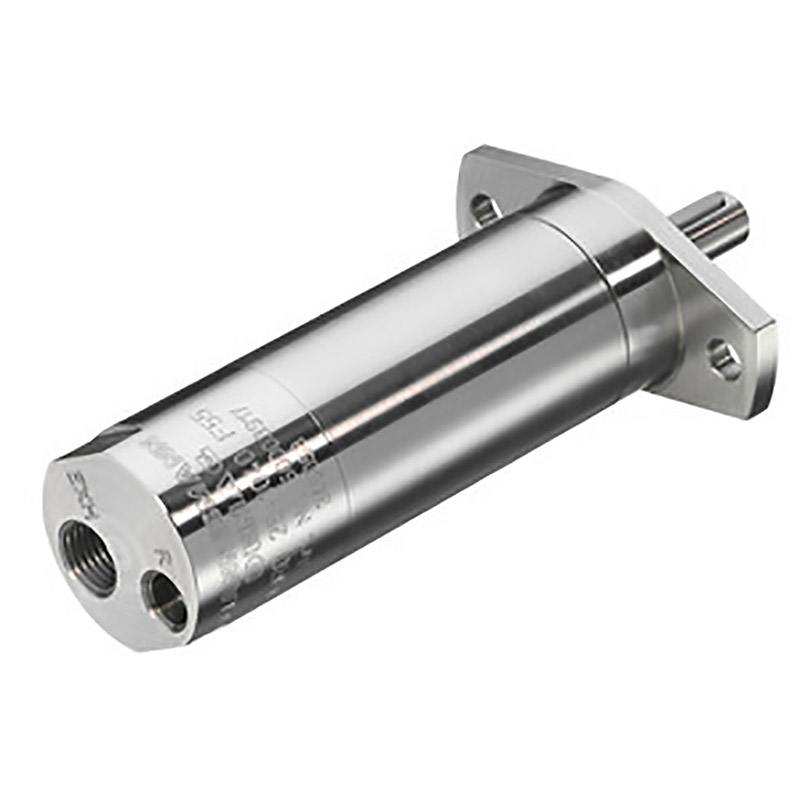

MRD 25-1040 F55 Air motor	1040	2,4	3,6	2080	Yes	2,4
MRD 25-1650 F55 Air motor	1650	1,5	2,3	3300	Yes	1,5
MRD 25-2200 F55 Air motor	2200	1,1	1,7	4400	Yes	1,1
MRD 25-9600 F55 Air motor	9600	0,25	0,38	19200	Yes	0,25

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in... more

Close menu

Product information "Air motors 0,25 kW"

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section.
