Air motors 1,20 kW

To be able to use maku Industrie GmbH & Co. KG in full range, we recommend activating Javascript in your browser.

Air motors, rotating clockwise, speed under load 65 - 9.300 rpm, torque 1,2 - 176,0 Nm, start torque 1,8 - 264,0 Nm

Product name	Speed under load in rpm	Torque in Nm	Start torque in Nm	Idling speed rpm	Non-lubricated	Torque in Nm
MRD 120-65 Air motor	65	176	264	130	Yes	176
MRD 120-85 Air motor	85	135	202	170	Yes	135

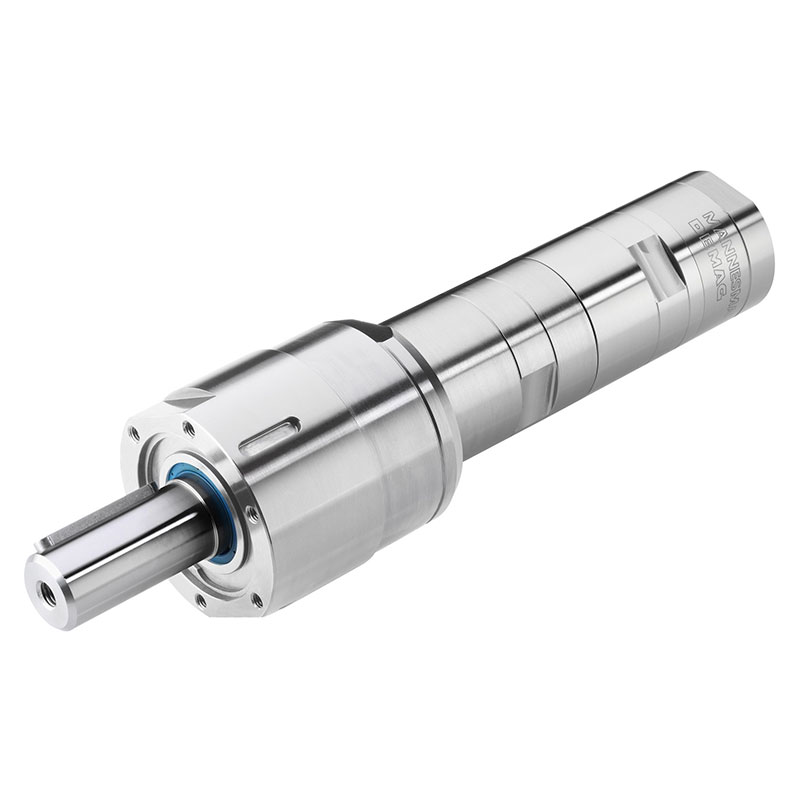

MRD 120-140 Air motor	140	82	123	280	Yes	82
MRD 120-260 Air motor	260	44	66	520	Yes	44
MRD 120-360 Air motor	360	32	47	720	Yes	32
MRD 120-600 Air motor	600	19	28	1200	Yes	19
MRD 120-1200 Air motor	1200	9,5	14	2400	Yes	9,5
MRD 120-1600 Air motor	1600	7	11	3200	Yes	7
MRD 120-2700 Air motor	2700	4,3	6,5	5400	Yes	4,3
MRD 120-9300 Air motor	9300	1,2	1,8	18600	Yes	1,2
MRD 120-260 F100 Air motor	260	44	66	520	Yes	44
MRD 120-360 F100 Air motor	360	32	47	720	Yes	32
MRD 120-600 F100 Air motor	600	19	28	1200	Yes	19
MRD 120-1200 F100 Air motor	1200	9,5	14	2400	Yes	9,5
MRD 120-1600 F100 Air motor	1600	7	11	3200	Yes	7
MRD 120-2700 F100 Air motor	2700	4,3	6,5	5400	Yes	4,3
MRD 120-9300 F100 Air motor	9300	1,2	1,8	18600	Yes	1,2

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in... more

Close menu

Product information "Air motors 1,20 kW"

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section.
