FM EO2-Functional nut Galvanized Steel

EO2 fitting, functional nut, galvanized steel

From €2.28 *

Available in 1 days, transport time

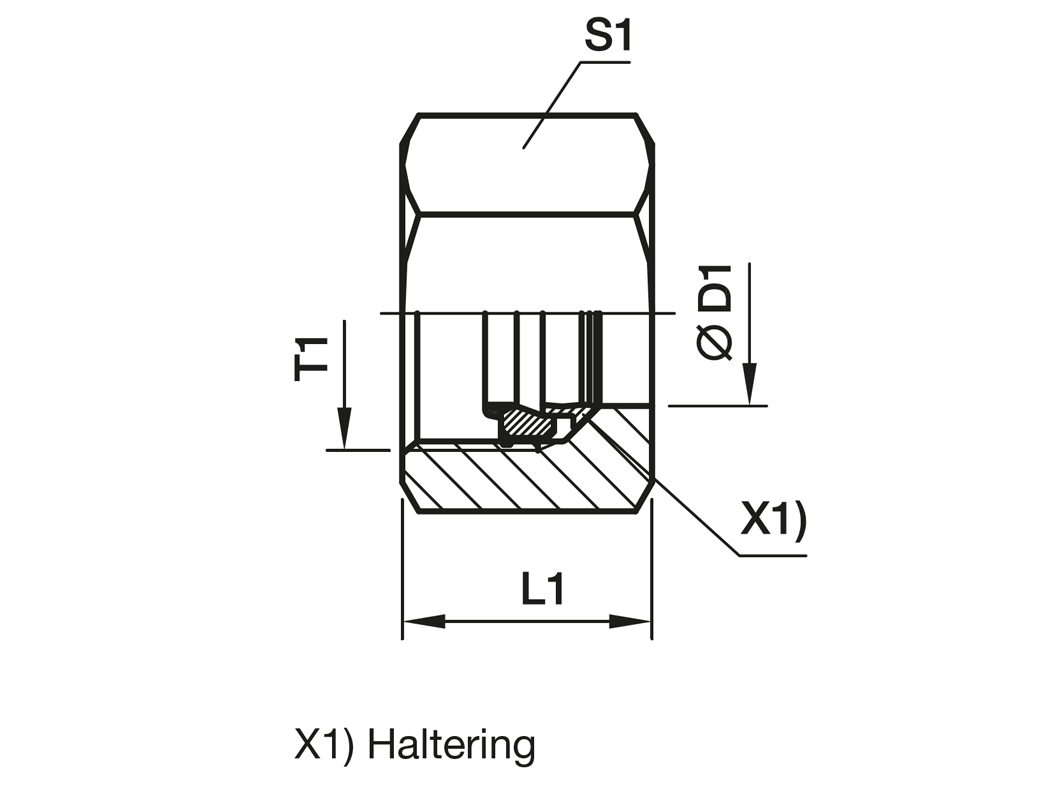

Product name	T1	Series	Seal	ØD1	L1	Price		Quantity
FM04LLCF EO2-Functional nut for steel tubes	M 08×1,0	Very light	NBR	4	11	€2.99 €6.64 (54.97% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM06LCF EO2-Functional nut for steel tubes	M 12×1,5	Light	NBR	6	14,5	€2.28 €5.06 (54.94% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM08LCF EO2-Functional nut for steel tubes	M 14×1,5	Light	NBR	8	14,5	€2.40 €5.33 (54.97% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM10LCF EO2-Functional nut for steel tubes	M 16×1,5	Light	NBR	10	15,5	€2.99 €6.63 (54.9% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM12LCF EO2-Functional nut for steel tubes	M 18×1,5	Light	NBR	12	15,5	€3.23 €7.16 (54.89% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM15LCF EO2-Functional nut for steel tubes	M 22×1,5	Light	NBR	15	17	€4.34 €9.65 (55.03% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM18LCF EO2-Functional nut for steel tubes	M 26×1,5	Light	NBR	18	18	€6.73 €14.95 (54.98% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM22LCF EO2-Functional nut for steel tubes	M 30×2,0	Light	NBR	22	20	€8.58 €19.05 (54.96% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM28LCF EO2-Functional nut for steel tubes	M 36×2,0	Light	NBR	28	21	€12.93 €25.87 (50.02% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM35LCF EO2-Functional nut for steel tubes	M 45×2,0	Light	NBR	35	24	€18.58 €41.29 (55% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM42LCF EO2-Functional nut for steel tubes	M 52×2,0	Light	NBR	42	24	€22.91 €50.91 (55% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM06SCF EO2-Functional nut for steel tubes	M 14×1,5	Heavy	NBR	6	16,5	€2.48 €5.50 (54.91% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM08SCF EO2-Functional nut for steel tubes	M 16×1,5	Heavy	NBR	8	16,5	€2.68 €5.96 (55.03% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM10SCF EO2-Functional nut for steel tubes	M 18×1,5	Heavy	NBR	10	17,5	€3.13 €6.96 (55.03% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM12SCF EO2-Functional nut for steel tubes	M 20×1,5	Heavy	NBR	12	17,5	€3.78 €8.41 (55.05% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM16SCF EO2-Functional nut for steel tubes	M 24×1,5	Heavy	NBR	16	20,5	€6.42 €14.27 (55.01% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM20SCF EO2-Functional nut for steel tubes	M 30×2,0	Heavy	NBR	20	24	€8.64 €19.22 (55.05% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM25SCF EO2-Functional nut for steel tubes	M 36×2,0	Heavy	NBR	25	27	€13.29 €29.54 (55.01% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM30SCF EO2-Functional nut for steel tubes	M 42×2,0	Heavy	NBR	30	29	€18.03 €40.09 (55.03% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM38SCF EO2-Functional nut for steel tubes	M 52×2,0	Heavy	NBR	38	32,5	€23.68 €52.63 (55.01% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM06LVITCF EO2-Functional nut for steel tubes	M 12×1,5	Light	FKM	6	14,5	€3.87 €8.58 (54.9% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM08LVITCF EO2-Functional nut for steel tubes	M 14×1,5	Light	FKM	8	14,5	€4.24 €9.41 (54.94% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM10LVITCF EO2-Functional nut for steel tubes	M 16×1,5	Light	FKM	10	15,5	€5.48 €12.16 (54.93% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM12LVITCF EO2-Functional nut for steel tubes	M 18×1,5	Light	FKM	12	15,5	€5.87 €13.05 (55.02% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM15LVITCF EO2-Functional nut for steel tubes	M 22×1,5	Light	FKM	15	17	€7.43 €16.51 (55% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM18LVITCF EO2-Functional nut for steel tubes	M 26×1,5	Light	FKM	18	18	€9.29 €20.65 (55.01% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM22LVITCF EO2-Functional nut for steel tubes	M 30×2,0	Light	FKM	22	20	€11.78 €26.18 (55% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM28LVITCF EO2-Functional nut for steel tubes	M 36×2,0	Light	FKM	28	21	€16.43 €36.51 (55% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM35LVITCF EO2-Functional nut for steel tubes	M 45×2,0	Light	FKM	35	24	€27.25 €60.56 (55% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM42LVITCF EO2-Functional nut for steel tubes	M 52×2,0	Light	FKM	42	24	€34.38 €76.42 (55.01% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM06SVITCF EO2-Functional nut for steel tubes	M 14×1,5	Heavy	FKM	6	16,5	€6.43 €14.30 (55.03% saved)	Available in 25 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM08SVITCF EO2-Functional nut for steel tubes	M 16×1,5	Heavy	FKM	8	16,5	€6.60 €14.66 (54.98% saved)	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM10SVITCF EO2-Functional nut for steel tubes	M 18×1,5	Heavy	FKM	10	17,5	€6.23 €13.86 (55.05% saved)	Available in 25 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM12SVITCF EO2-Functional nut for steel tubes	M 20×1,5	Heavy	FKM	12	17,5	€7.38 €16.39 (54.97% saved)	Available in 25 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM16SVITCF EO2-Functional nut for steel tubes	M 24×1,5	Heavy	FKM	16	20,5	€9.80 €21.78 (55% saved)	Available in 25 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM20SVITCF EO2-Functional nut for steel tubes	M 30×2,0	Heavy	FKM	20	24	€13.88 €30.83 (54.98% saved)	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM25SVITCF EO2-Functional nut for steel tubes	M 36×2,0	Heavy	FKM	25	27	€19.04 €42.33 (55.02% saved)	Available in 25 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM30SVITCF EO2-Functional nut for steel tubes	M 42×2,0	Heavy	FKM	30	29	€28.75 €63.90 (55.01% saved)	Available in 25 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
FM38SVITCF EO2-Functional nut for steel tubes	M 52×2,0	Heavy	FKM	38	32,5	€35.26 €78.34 (54.99% saved)	Available in 25 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "FM EO2-Functional nut Galvanized Steel"

Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM). The FM EO-2 functional nut is available with sealing NBR or sealing FKM.

Markets:
• Automotive
• Defense
• Energy
• Environment
• Industrial
• Infrastructure
• Machine Tools
• Materials Handling
• Mobile
• Oil and Gas
• Power Generation
• Process
• Transportation
• Water

Applications:
• Suitable for general hydraulic applications.

Features/ benefits:
• Steel and Stainless steel fittings have a high corrosion resistance to aggressive media and environmental influences.
• Depending on the specific requirements, the FM EO-2 functional nut can be delivered with sealing NBR or sealing FKM. This feature increase the range of applications.

Series:	Very light, light, heavy
Specifications met:	DIN ISO 8434
Material:	Galvanized steel
Maximum working pressure in bar:	100-800
Rohraußendurchmesser:	6-42 mm
Working temperature:	-40°C up to 250°C

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
