Product information "Filter regulator Syntesi - 5612B242"
One unit for filtration, condensate separation and pressure regulation. Adjusted pressure stays constant despite pressure variations. 360° viewing glass. Relief valve. Padlockable push-lock knob. Including pressure gauge. Additional ports for pressure gauges, pressure switches or for use as additional air take-off.
Shielding plate:
Technopolymer
Shut off plate adjustment knob:
Steel, galvanized
Connection:
Female thread G 1/4"
Seals:
NBR O-Ring
Flow rate in l/min:
800
Input and output socket:
Brass Ms58 or aluminum, anodized
Adjustment knob:
Technopolymer
Filter element:
HDPE sintered
Filterfeinheit in µm:
20
Filter case:
Technopolymer
Flange:
Technopolymer
Weight in kg:
0,24
Bell:
Technopolymer
Transparent container:
Technopolymer
max. inlet pressure:
15
Board:
Technopolymer
Regulator spring:
Steel
Regulator screw:
Brass Ms58
Ring nut:
Technopolymer
Series:
Syntesi
Tappet:
Technopolymer
Valve:
Messing Ms58 vulcanized with NBR
Valve spring:
Stainless steel
Centrifuge:
Technopolymer
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

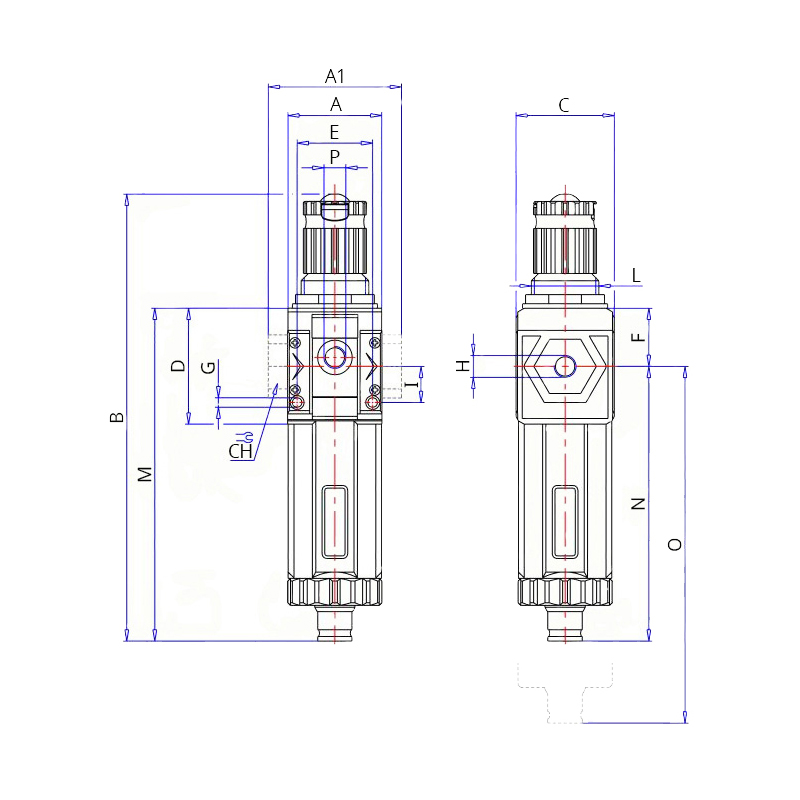

A:
42
B:
198
C:
44
D:
51,5
E:
33,5
F:
25,8
G:
Hole for screws M4
I:
16
L:
M30x1,5
M:
148
N:
122,2
O:
202
P:
1/8" (Pressure gauge connection or additional air intake)
