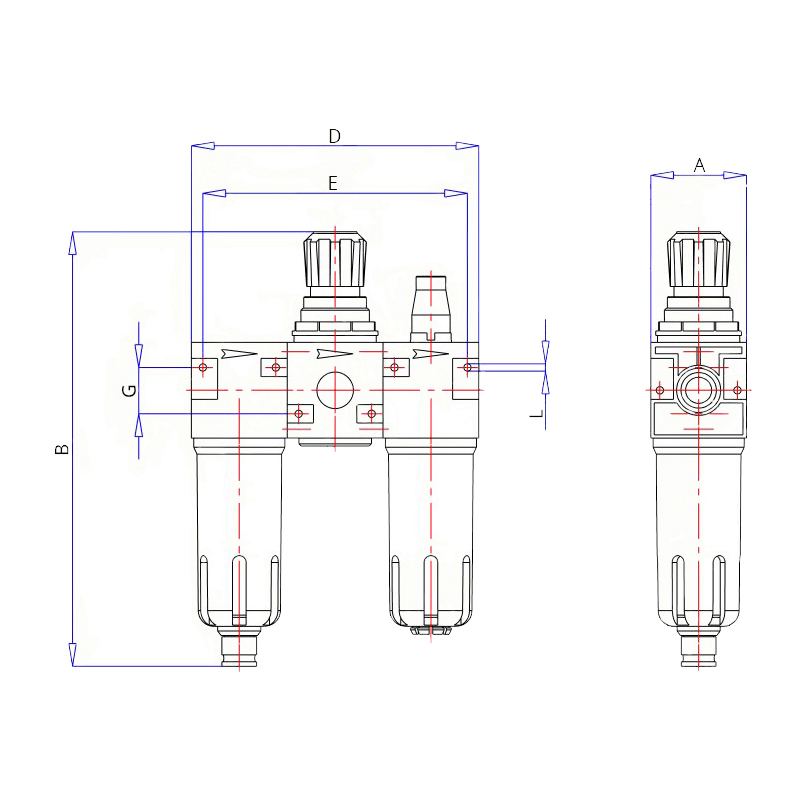

Product information "Filter/regulator/lubricator (three-part) Newdeal - 1224054"
Robust service unit made of metal. Adjusted pressure stays constant despite pressure variations. Metal container with 360° viewing window. Quantity of lubricant proportioned to air flow. Micrometic regulation of lubricant flow. Activates at low flow rates. Including pressure gauge.
Shielding:
Technopolymer
Shielding plate:
Technopolymer
Connection:
Female thread G 1/4"
Type of oiling:
Drip lubricator
Container:
Aluminium
Seals:
NBR
Dome:
Technopolymer
Flow rate in l/min:
140
Adjustment spring:
Steel
Adjustment knob:
Technopolymer
Adjusting nut:
Brass Ms58
Adjusting screw:
Brass Ms58
Filter element:
HDPE
Filterfeinheit in µm:
20
Weight in kg:
0,945
Inner container:
Transparent technopolymer
Piston:
Technopolymer
Body:
Zamac
Lip seal:
NBR
max. inlet pressure:
18
Oil sight glass:
Technopolymer
Control needle:
Brass Ms58
Ring nut:
Technopolymer
Hose:
Rislan®
Series:
Newdeal
Bar:
Brass Ms58
Plug:
Technopolymer
Valve spring:
Steel
Valve part:
Vulcanized with NBR
Venturi system:
NBR
Centrifuge:
Technopolymer
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
