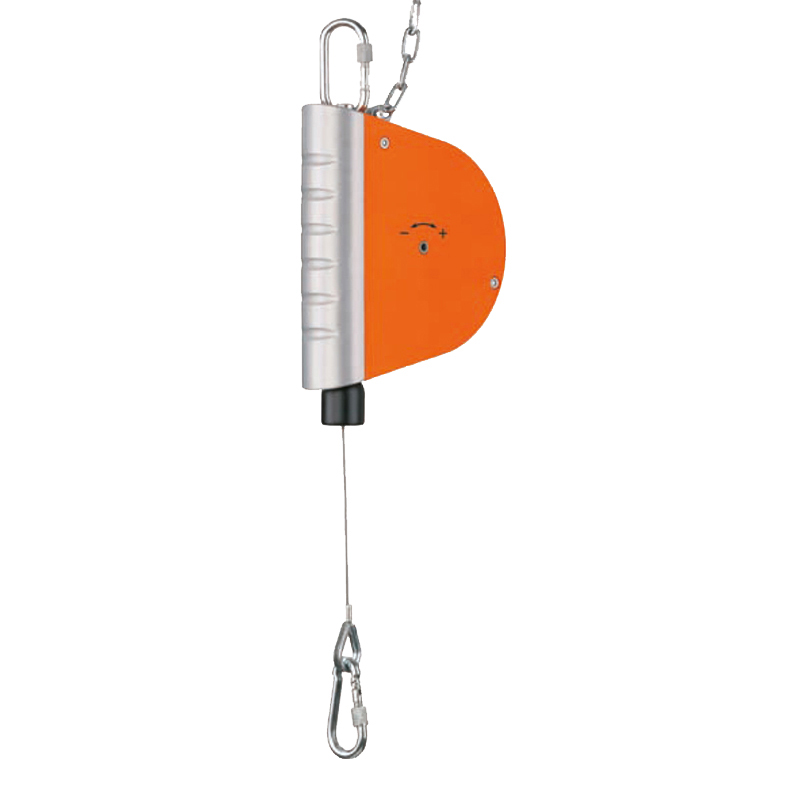

Product information "Spring balancer 77001322"

Spring balancer for lightweight and hand-operated tools that have to be kept ready in a predetermined position. High stability and quality.The casing is made of extremely shockproof special plastic, red-orange.The cable drum is made of abrasion-resistant plastic.High-strength steel cable with elastic cable stop buffer and lightweight carabiner for hanging the load.High-strength special mainspring.Easy load setting protected against operating error.Load mounting with secure carabiner.Hanging with screwing carabiner.The automatic locking of the cable windup makes it possible to block the device.Longer cables available on demand.
Fall protection: Existing, according to DIN 15112
Locking: Yes
Suspension: Screwing carabiner
Spring fracture protection: No
Weight in kg: 0,9
Material casing: Shockproof special plastic
Cable stop: Yes, shock absorbing and adjustable
Series: 7212
Series long: 7212
Load attachment: Carabiner
Payload range in kg: 1,5 - 3
Load setting: Easy setting - protected against operating error
Additional information: Do not use the locking for changing the load!
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

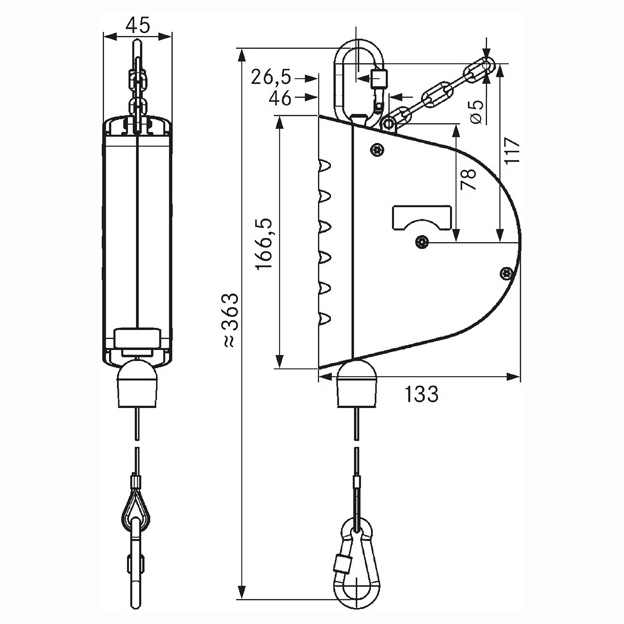

Technische Zeichnung 77001321
Cable length in m: 2,5
