- High true-running accuracy for long endurance run times
- High revolution speed for excellent surface finishing
- The force of compliance can be set and adjusted precisely by using a precision pressure regulator
All data related to 6.3 bar working pressure.
| Idling speed rpm: | 55000 |
| Air supply: | lubricated |
| Power in kW: | 100 |
| Radial deflection: | +/- 4° |
| Direction of rotation: | Rotating clockwise |
| Exhaust Air: | to front |
| ZG collet in mm: | 3 |
| Pre-adjusted force of compliance in N: | 5 - 7 |
| Noise level in dB(A): | 78 |
| Air consumption in l/s: | 2,3 |
| Accessories supplied: | Wrenches, Springs |
| Anschluss Zuluftschlauch (Blitz) ø mm, innen \ außen: | 2,7 \ 4 |
| Item number: | 29948665 |
| Weight in kg: | 0,57 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
Available downloads:

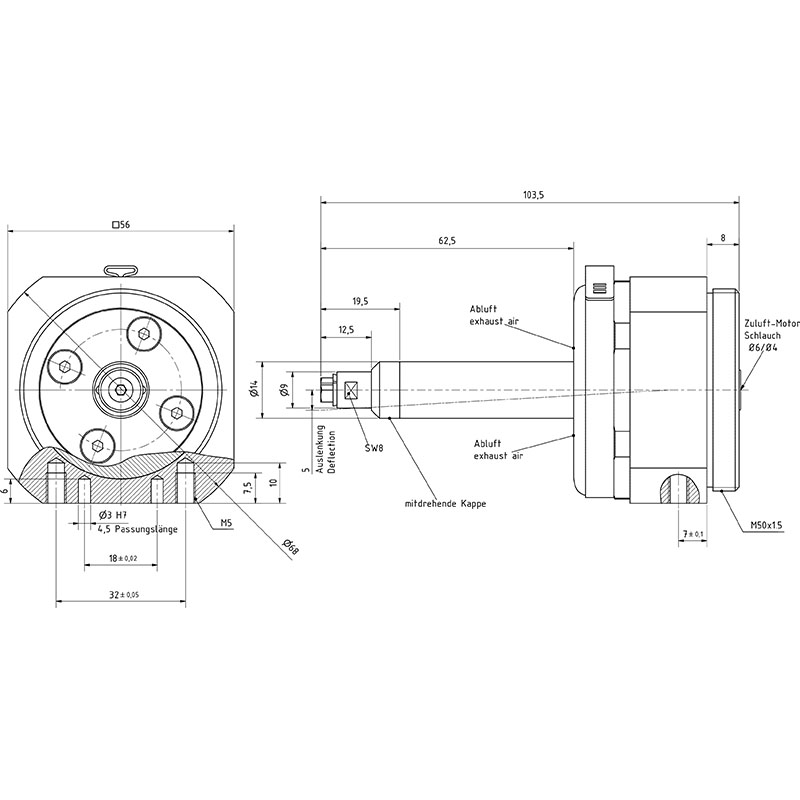

3D Modell
