- ESR 38-520 for rubbing and deburring of drill holes and intersections
All data related to 6.3 bar working pressure.
| Idling speed rpm: | 520 |
| Air supply: | lubricated |
| Power in kW: | 380 |
| Radial deflection: | +/- 4° |
| Direction of rotation: | Rotating clockwise |
| Exhaust Air: | to front |
| ER collet in mm: | 6 |
| Compliance force range in N: | 18 - 75 |
| Force of compliance max.* in N: | 200 |
| Noise level in dB(A): | 80 |
| Air consumption in l/s: | 8,3 |
| Accessories supplied: | Wrench |
| Anschluss Zuluftschlauch (Blitz) ø mm, innen \ außen: | 10 \ 12 |
| Item number: | 29948435 |
| Weight in kg: | 4,9 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
Available downloads:

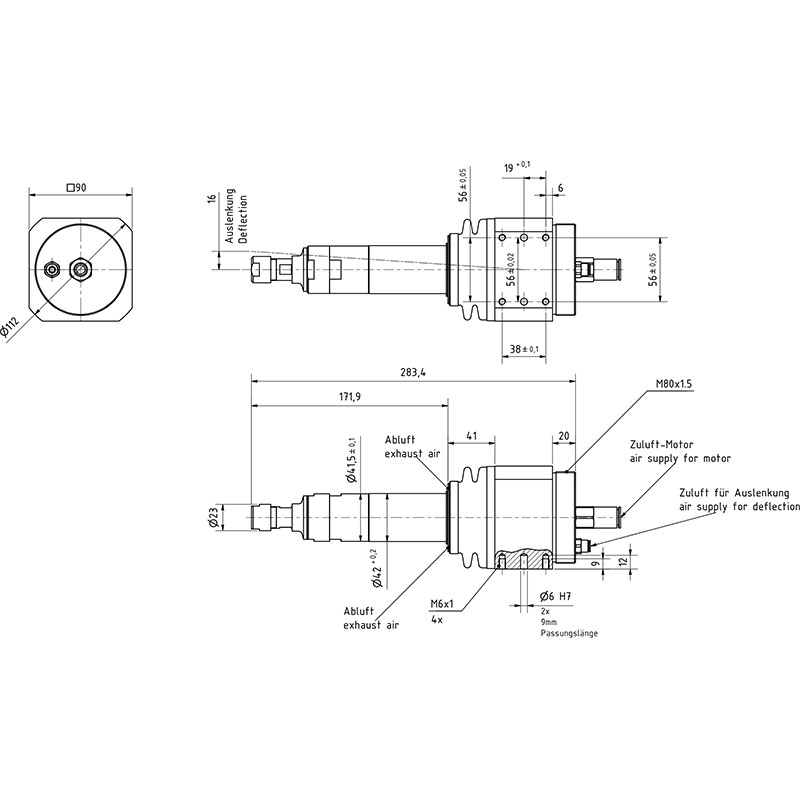

3D Modell
