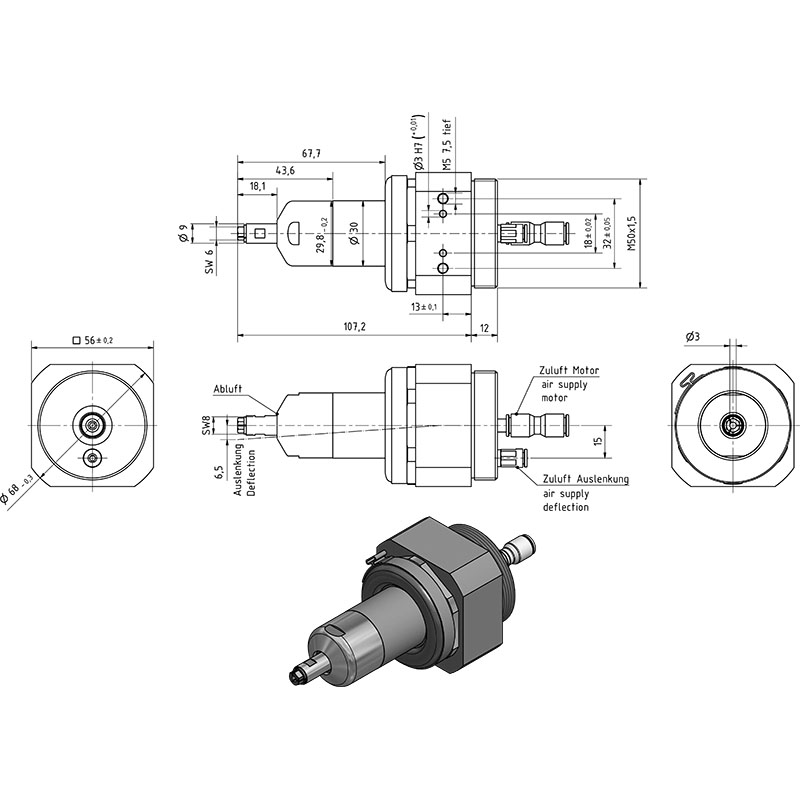

ESR 1100 Air grinding spindle

110.000 min⁻¹, 100 Watt, non-lubricated use, floating support

Price on request

Available in 1 days, transport time

High true-running accuracy for long endurance run times
High revolution speed for excellent surface finishing
For non-lubricated use, practically wearless, with floating spindle support
Easy to service turbine motor
Ideal for plastics and other materials which require non-lubricated and clean air
The force of compliance can be set and adjusted precisely by using a precision pressure regulator

All data related to 6.3 bar working pressure.

Exhaust Air:	to front
Fully variable force of compliance in N:	4 - 12
Anschluss Zuluftschlauch (Blitz) ø mm, innen \ außen:	2,7 \ 4
Item number:	60073195
Radial deflection:	+/- 4°
Direction of rotation:	Rotating clockwise
Air supply:	Non-lubricated
Noise level in dB(A):	70
Weight in kg:	0,82
Idling speed rpm:	110000
Power in kW:	0,1
Air consumption in l/s:	5,3
Accessories supplied:	Wrench
ZG collet in mm:	3

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
