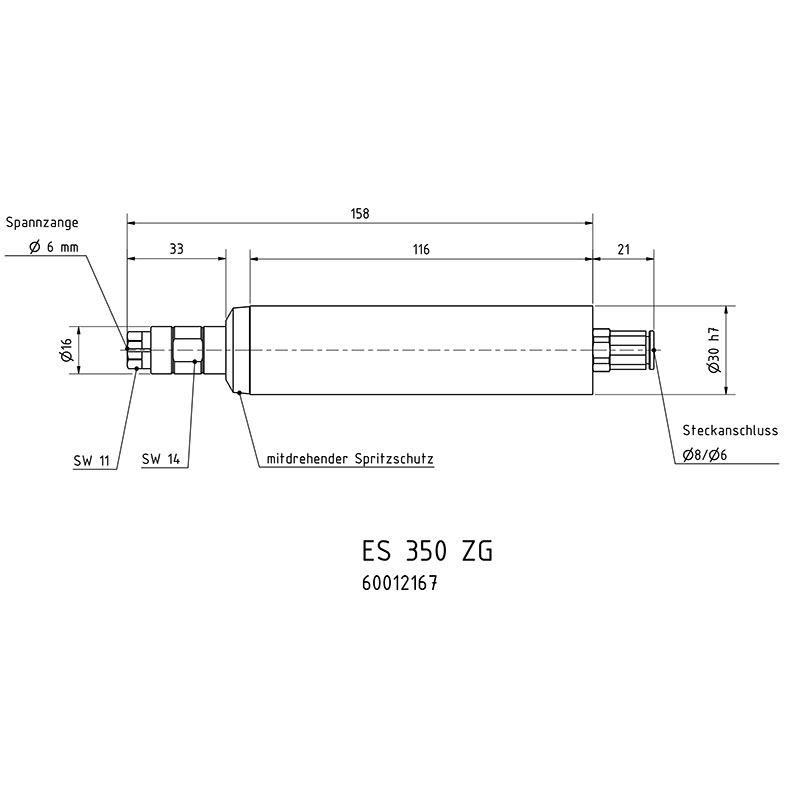

ES 350 ZG Air grinding spindle

35.000 min⁻¹, 300 Watt, paired bearings

Price on request

Available in 1 days, transport time

For installation in transfer lines, machine tools and robot stations
Stainless steel housings
Stainless steel spindles
With collet chuck or precision collet chuck
High true-running accuracy
Paired bearings for longer tool life time and better running properties
Optional with rotating splashguard to prevent penetration of dust, water or chips

All data related to 6.3 bar working pressure.

Exhaust Air:	to rear
Anschluss Zuluftschlauch (Blitz) ø mm, innen \ außen:	6 \ 8
Item number:	60012167
Direction of rotation:	Rotating clockwise
Noise level in dB(A):	79
Weight in kg:	0,42
Carbide burrs up to max. diam.:	10
Idling speed rpm:	35000
Power in kW:	0,3
Air consumption in l/s:	8,3
Mounted points up to max. diam.:	16
ZG collet in mm:	6

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
