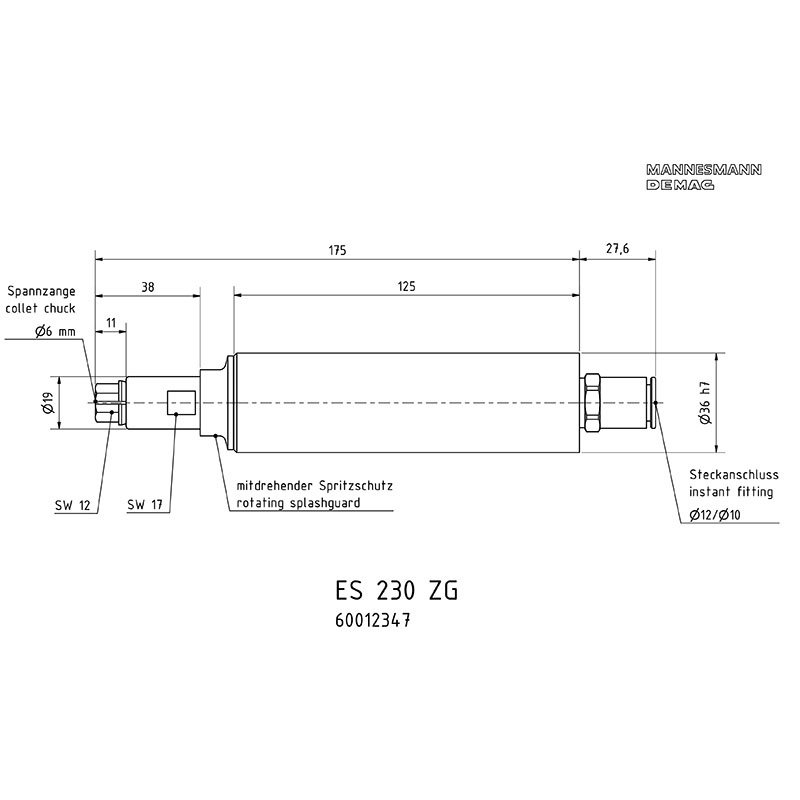

Product information "ES 230 ZG Air grinding spindle"

  • For installation in transfer lines, machine tools and robot stations
  • Stainless steel housings
  • Stainless steel spindles
  • With collet chuck or precision collet chuck
  • High true-running accuracy
  • Paired bearings for longer tool life time and better running properties
  • Optional with rotating splashguard to prevent penetration of dust, water or chips
All data related to 6.3 bar working pressure.
Exhaust Air: to rear
Anschluss Zuluftschlauch (Blitz) ø mm, innen \ außen: 10 \ 12
Item number: 60012347
Direction of rotation: Rotating clockwise
Noise level in dB(A): 78
Weight in kg: 0,74
Carbide burrs up to max. diam.: 12
Idling speed rpm: 24000
Power in kW: 0,32
Air consumption in l/s: 12,5
Mounted points up to max. diam.: 25
Collet in mm: 6
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
