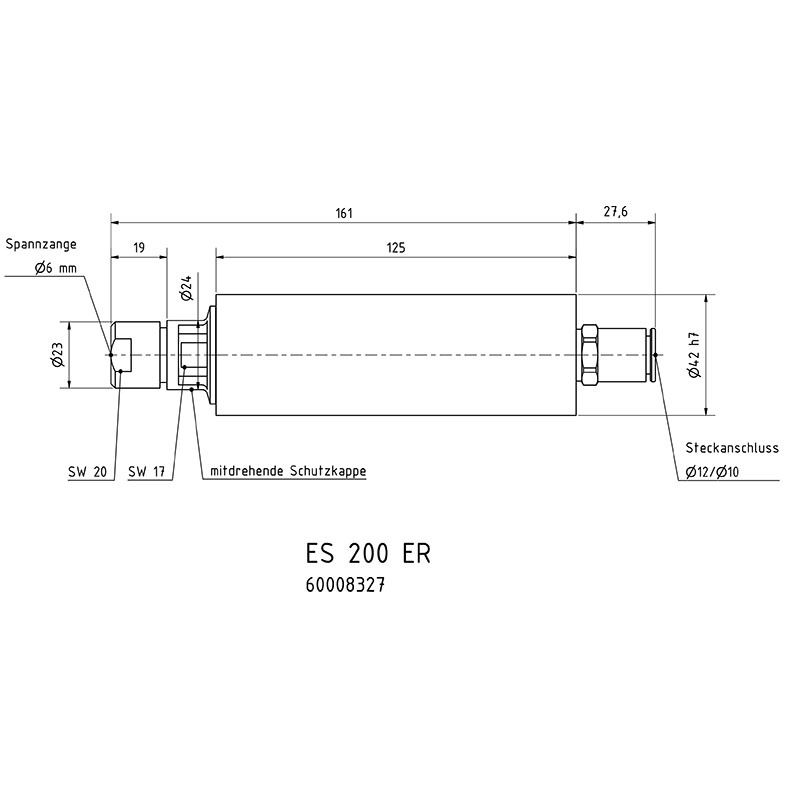

ES 200 ER Air grinding spindle

20.000 min⁻¹, 400 Watt, paired bearings, ER collet

Price on request

Available, delivery time: 1-2 working days

For installation in transfer lines, machine tools and robot stations
Stainless steel housings
Stainless steel spindles
With collet chuck or precision collet chuck
High true-running accuracy
Paired bearings for longer tool life time and better running properties
Optional with rotating splashguard to prevent penetration of dust, water or chips

All data related to 6.3 bar working pressure.

Exhaust Air:	to rear
Anschluss Zuluftschlauch (Blitz) ø mm, innen \ außen:	10 \ 12
Item number:	60008327
Direction of rotation:	Rotating clockwise
ER collet in mm:	6
Noise level in dB(A):	72
Weight in kg:	1,1
Carbide burrs up to max. diam.:	12
Idling speed rpm:	20000
Power in kW:	0,4
Air consumption in l/s:	8,5
Mounted points up to max. diam.:	25

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
