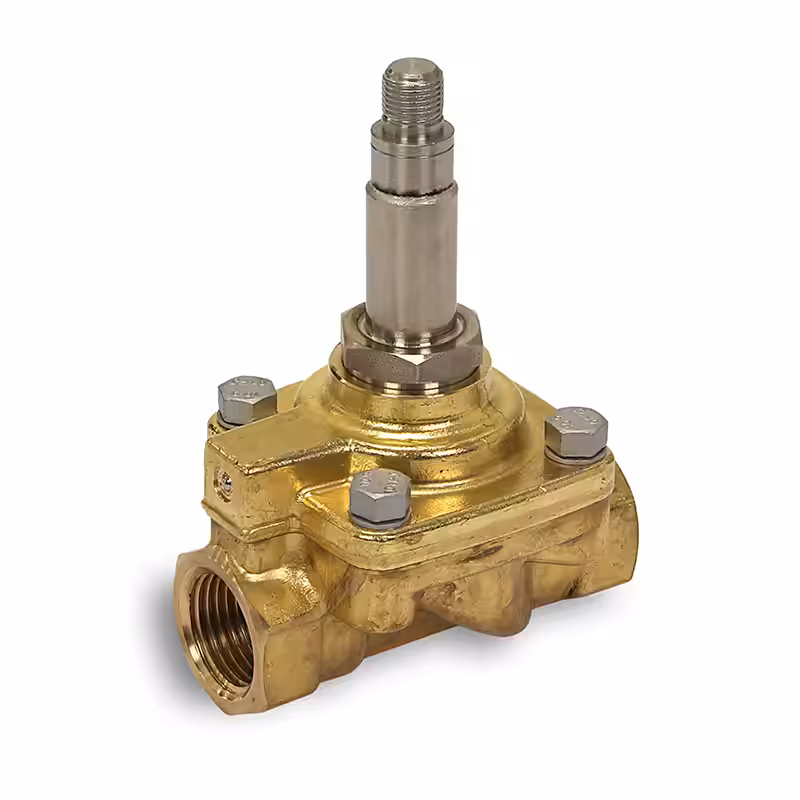

Product information "E321H13 Solenoid valve without coil"

The H-Series indirect operating solenoid valves are specifically designed for high-performance applications in industry and process engineering, where high operating pressures and critical media such as oils or compressed air must be handled. Thanks to a reinforced diaphragm construction and an extremely durable stainless steel actuator, this product line is designed for a service life of many millions of cycles, extending maintenance intervals and significantly optimizing total operating costs. Their exceptional robustness makes these valves the ideal choice for demanding processes such as PET bottle stretch blow molding, use in compressors, reliable oil shut-off, or continuous operation in car washes. Furthermore, the availability of numerous electrical options with international certifications according to VDE, UL, and ATEX allows the H-Series to be easily integrated into safety-critical or globally operating systems.
Connection: Female thread 3/8"
Seal: NBR
Function: normally closed
Material: Brass
Bore in mm: 11
Actuation: pre-controlled
Series: Lucifer
Working temperature: -10°C to +100°C fluid temperature
Flow rate in l/min: 50
Power in W: 8
Operating pressure differential max. in bar: 40
Weight in kg: 0,696
Case: Assembly kit 2995
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.


Skip product gallery

Spule

4-6 workdays
483510
482725A2 Coil for solenoid valve
32 mm Coil for solenoid valve, 24 V AC / 50 Hz, 8 W

Price on request

4-6 workdays
483510
4827253D Coil for solenoid valve
32 mm Coil for solenoid valve, 220-230 V AC / 50 Hz, 8 W

Price on request

4-6 workdays
483510
482725A5 Coil for solenoid valve
32 mm Coil for solenoid valve, 110 V AC / 50 Hz, 8 W

Price on request

4-6 workdays
483510
482725C1 Coil for solenoid valve
32 mm Coil for solenoid valve, 12 V DC, 9 W

Price on request

4-6 workdays
483510
482725C2 Coil for solenoid valve
32 mm Coil for solenoid valve, 24 V DC, 9 W

Price on request

approx. 22 workdays
495870_496110
4958703D Coil for solenoid valve
32 mm Coil for solenoid valve, 220-230 V AC / 50 Hz, 8 W

€94.37
approx. 12 workdays
495870_496110
495870C2 Coil for solenoid valve
32 mm Coil for solenoid valve, 24 V DC, 8 W

€91.51
approx. 12 workdays
495900_495905
495905F4 Coil for solenoid valve
32 mm Coil for solenoid valve, 230 V AC / 50 Hz, 8 W

€194.21
approx. 12 workdays
495900_495905
495905C2 Coil for solenoid valve
32 mm Coil for solenoid valve, 24 V DC, 8 W

€194.21
