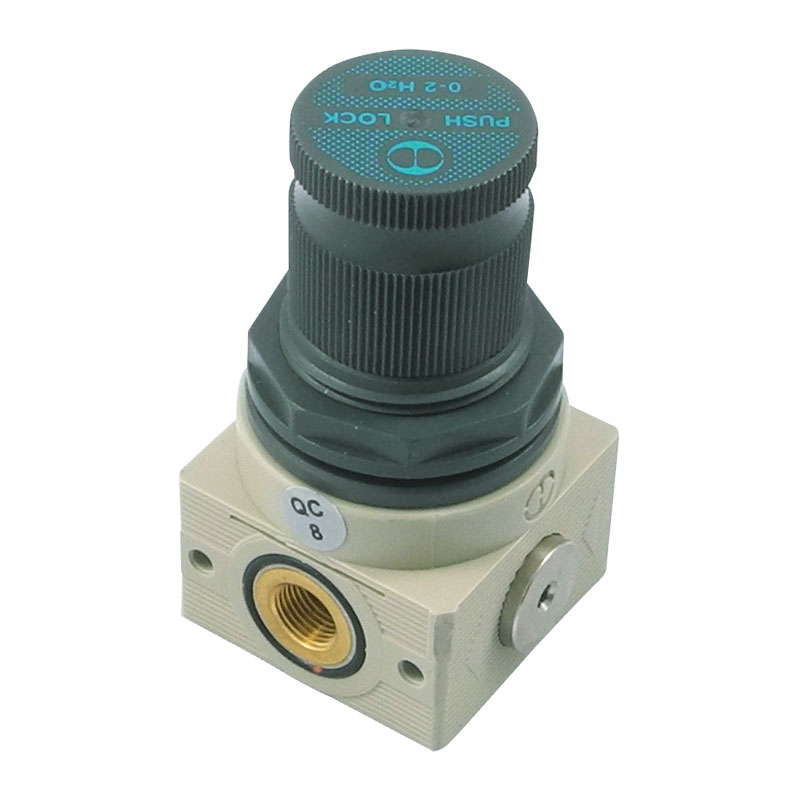

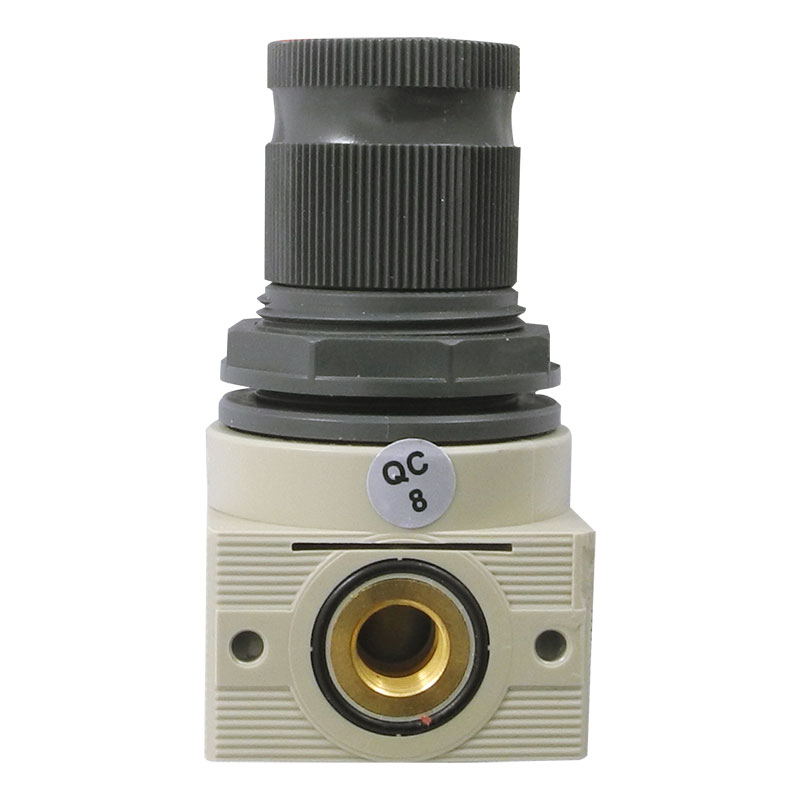

Product information "Regulator Bit for water - 5108004"
Used to regulate the pressure in water circuits; without blowoff valve Micro-regulator with rolling diaphragm. Preset pressure stability as the upstream pressure varies. High flow rates with reduced pressure drops Quick overpressure exhaust
Wall fixing screws: M4 by means of the bracket provided
Connection:
Female thread G 1/8"
Seals:
NBR
Dome:
Technopolymer
Working pressure:
0 – 12 bar
Flow rate in l/min:
600
Mounting position:
In any position
Adjustment spring:
Steel
Adjustment knob:
Technopolymer
Adjusting nut:
Brass Ms58
Weight in kg:
0,08
Adjusting screw:
Brass Ms58
Body:
Technopolymer with threaded sleeve brass Ms58
max. inlet pressure:
13 bar
Nut:
Brass Ms58
Regulator spring:
Steel
Regulator case:
Technopolymer
Ring nut:
Technopolymer
Series:
Bit
Plug:
Technopolymer
Valve spring:
Stainless steel
Valve part:
Brass Ms58 vulcanized with NBR
Additional information:
The regulator pressure must always be set upwards._x000D_ For increased sensitivity, use a pressure regulator with a rated pressure as close as possible to the required value.
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
