MUD 23-240
Image shows: MUD 23-240

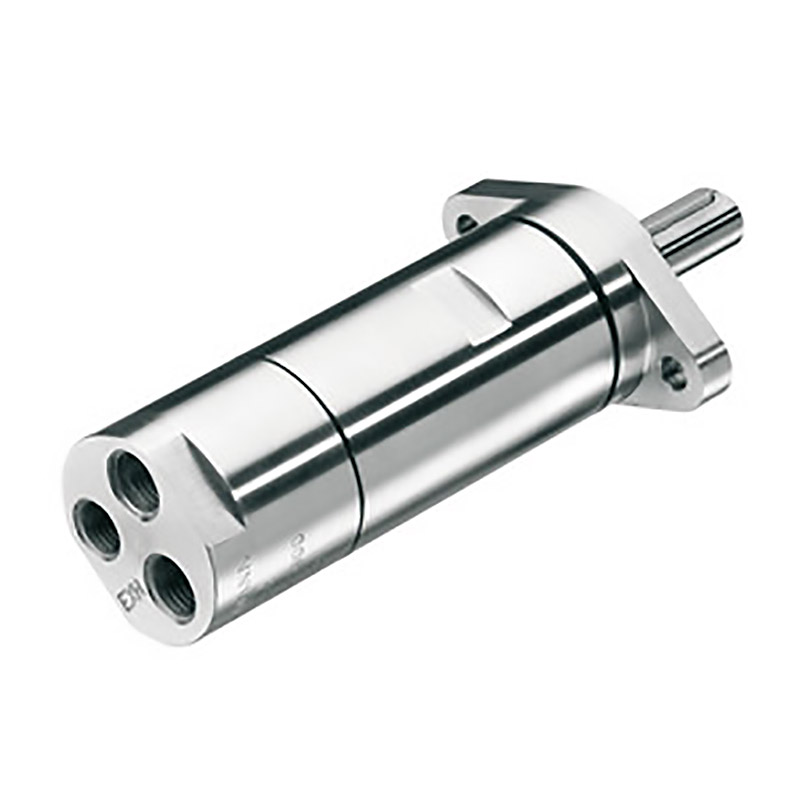

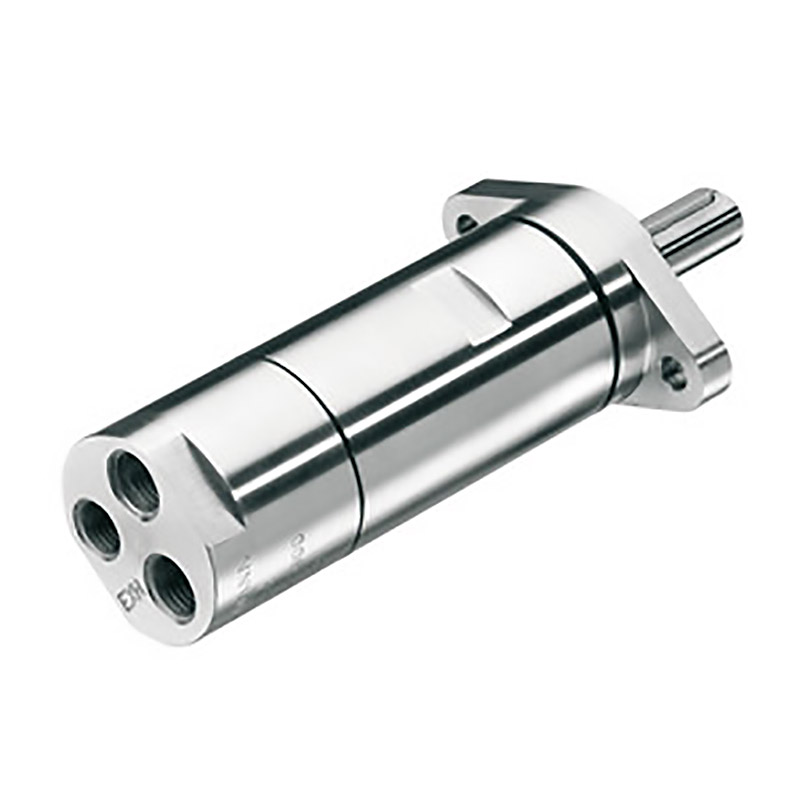

MUD 23-1090 F54
Image shows: MUD 23-1090 F54
MUD 23-240
MUD 23-1090 F54

Air motors 0,23 kW

Air motors, reversible, speed under load 7 - 7.000 rpm, torque 0,31 - 313,0 Nm, start torque 0,46 - 469,0 Nm

Price on request

Available, delivery time:

PDF-Datasheet
Product name Idling speed rpm Torque in Nm Speed under load in rpm Non-lubricated Start torque in Nm
MUD 23-7 Air motor 14 313 7 Yes 469
MUD 23-10 Air motor 20 220 10 Yes 330
MUD 23-15 Air motor 30 147 15 Yes 220
MUD 23-20 Air motor 40 110 20 Yes 165
MUD 23-25 Air motor 50 88 25 Yes 132
MUD 23-30 Air motor 60 74 30 Yes 110
MUD 23-40 Air motor 80 55 40 Yes 83
MUD 23-55 Air motor 110 40 55 Yes 60
MUD 23-70 Air motor 140 32 70 Yes 47
MUD 23-120 Air motor 240 18 120 Yes 27
MUD 23-190 Air motor 380 12 190 Yes 17
MUD 23-240 Air motor 480 9,2 240 Yes 14
MUD 23-435 Air motor 870 5 435 Yes 7,5
MUD 23-880 Air motor 1760 2,5 880 Yes 3,8
MUD 23-1090 Air motor 2180 2 1090 Yes 3
MUD 23-1960 Air motor 3920 1,1 1960 Yes 1,7
MUD 23-7000 Air motor 14000 0,31 7000 Yes 0,46
MUD 23-120 F54 Air motor 240 18 120 Yes 27
MUD 23-190 F54 Air motor 380 12 190 Yes 17
MUD 23-240 F54 Air motor 480 9,2 240 Yes 14
MUD 23-435 F54 Air motor 870 5 435 Yes 7,5
MUD 23-880 F54 Air motor 1760 2,5 880 Yes 3,8
MUD 23-1090 F54 Air motor 2180 2 1090 Yes 3
MUD 23-1960 F54 Air motor 3920 1,1 1960 Yes 1,7
MUD 23-7000 F54 Air motor 14000 0,31 7000 Yes 0,46
MUD 23-25 F100 Air motor 50 88 25 Yes 132
MUD 23-30 F100 Air motor 60 74 30 Yes 110
MUD 23-40 F100 Air motor 80 55 40 Yes 83
MUD 23-55 F100 Air motor 110 40 55 Yes 60
MUD 23-70 F100 Air motor 140 32 70 Yes 47

Product information "Air motors 0,23 kW"

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section. Reversible motors can be used rotating clockwise and anti clockwise. It is very important that if the air motor is pressurized with connection turning the air motor left, the connection turning the air motor right is vented properly (and vize versa).
