DPR Progressive ring Stainless Steel SPH
From €0.00 *
Available in 1 days, transport time

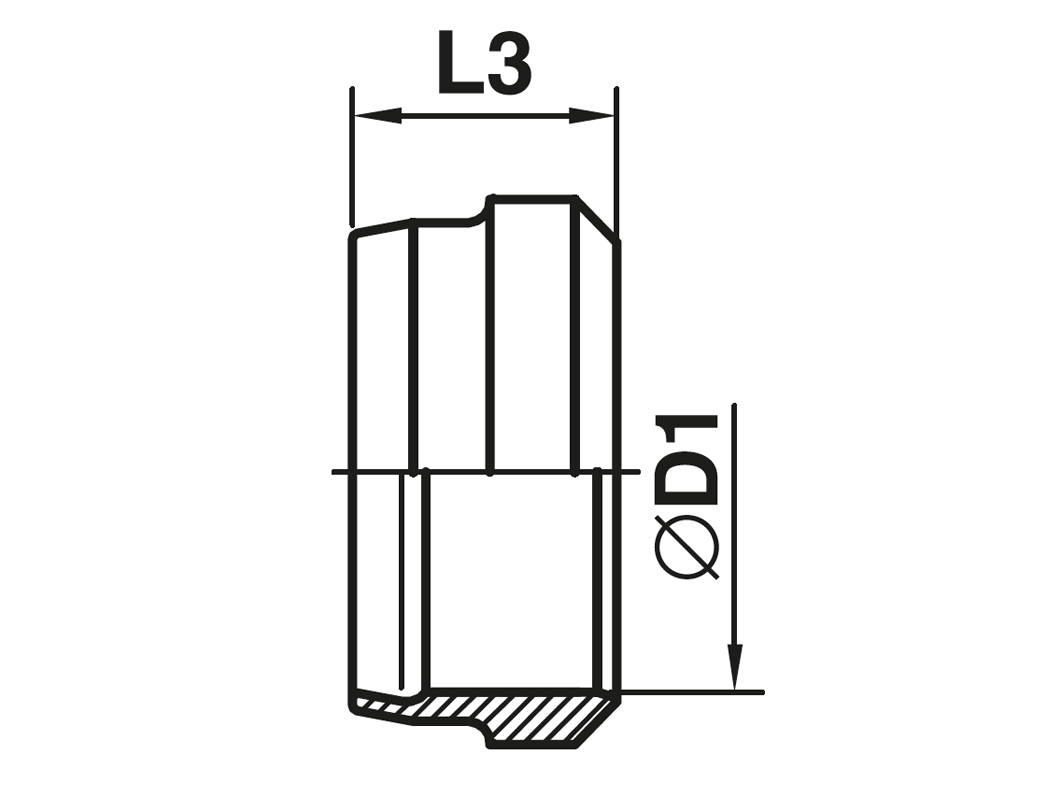

| Product name | Series | ØD1 | L3 | Price | Quantity | |
|---|---|---|---|---|---|---|
| DPR06LSPH71X Progressive ring | Light | 6 | 9 | €4.69 €11.72 (59.98% saved) | Available in 29 days, transport time 3-4 working days | |
| DPR08LSPH71X Progressive ring | Light | 8 | 9 | €4.82 €12.05 (60% saved) | Available in 28 days, transport time 1-2 working days | |
| DPR10LSPH71X Progressive ring | Light | 10 | 9,5 | €6.62 €16.54 (59.98% saved) | Available in 34 days, transport time 3-4 working days | |
| DPR12LSPH71X Progressive ring | Light | 12 | 9,8 | €6.79 €16.98 (60.01% saved) | Available in 58 days, transport time 3-4 working days | |
| DPR15LSPH71X Progressive ring | Light | 15 | 9,5 | €6.79 €16.99 (60.04% saved) | This article is currently not available! | |
| DPR18LSPH71X Progressive ring | Light | 18 | 9,5 | €15.01 €37.51 (59.98% saved) | Available in 31 days, transport time 1-2 working days | |
| DPR22LSPH71X Progressive ring | Light | 22 | 10,5 | Price on request | Available in 1 days, transport time | |
| DPR28LSPH71X Progressive ring | Light | 28 | 11 | €16.21 €40.51 (59.99% saved) | This article is currently not available! | |
| DPR35LSPH71X Progressive ring | Light | 35 | 13,5 | €33.80 €84.48 (59.99% saved) | This article is currently not available! | |
| DPR42LSPH71X Progressive ring | Light | 42 | 13,5 | Price on request | Available in 1 days, transport time | |
| DPR16SSPH71X Progressive ring | Heavy | 16 | 9,5 | €14.04 €35.09 (59.99% saved) | Available in 31 days, transport time 1-2 working days | |
| DPR20SSPH71X Progressive ring | Heavy | 20 | 12,5 | €16.14 €40.34 (59.99% saved) | Available in 31 days, transport time 1-2 working days | |
| DPR25SSPH71X Progressive ring | Heavy | 25 | 12,5 | €16.03 €40.07 (60% saved) | This article is currently not available! | |
| DPR30SSPH71X Progressive ring | Heavy | 30 | 12,5 | €30.54 €76.33 (59.99% saved) | Available in 15 days, transport time 1-2 working days | |
| DPR38SSPH71X Progressive ring | Heavy | 38 | 13 | €105.98 €264.94 (60% saved) | Available in 15 days, transport time 1-2 working days |
Product information "DPR Progressive ring Stainless Steel SPH"
Markets:
• Automotive
• Defense
• Energy
• Environment
• Industrial
• Infrastructure
• Machine Tools
• Materials Handling
• Mobile
• Oil and Gas
• Power Generation
• Process
• Transportation
• Water
Applications:
• Suitable for general hydraulic applications.
Features/ benefits:
• Steel and Stainless steel fittings have a high corrosion resistance to aggressive media and environmental influences.
• Depending on the specific requirements, the FM EO-2 functional nut can be delivered with sealing NBR or sealing FKM. This feature increase the range of applications.
| Series: | Light, heavy |
|---|---|
| Specifications met: | DIN ISO 8434 |
| Material: | Stainless steel SPH |
| Maximum working pressure in bar: | 160-630 |
| Rohraußendurchmesser: | 6-42 mm |
| Working temperature: | -60°C up to 400°C |
