The Air Saver generates a pulsating compressed air flow. The fast ON / OFF switching reduces the compressed air consumption while increasing the efficiency of many blowing processes.

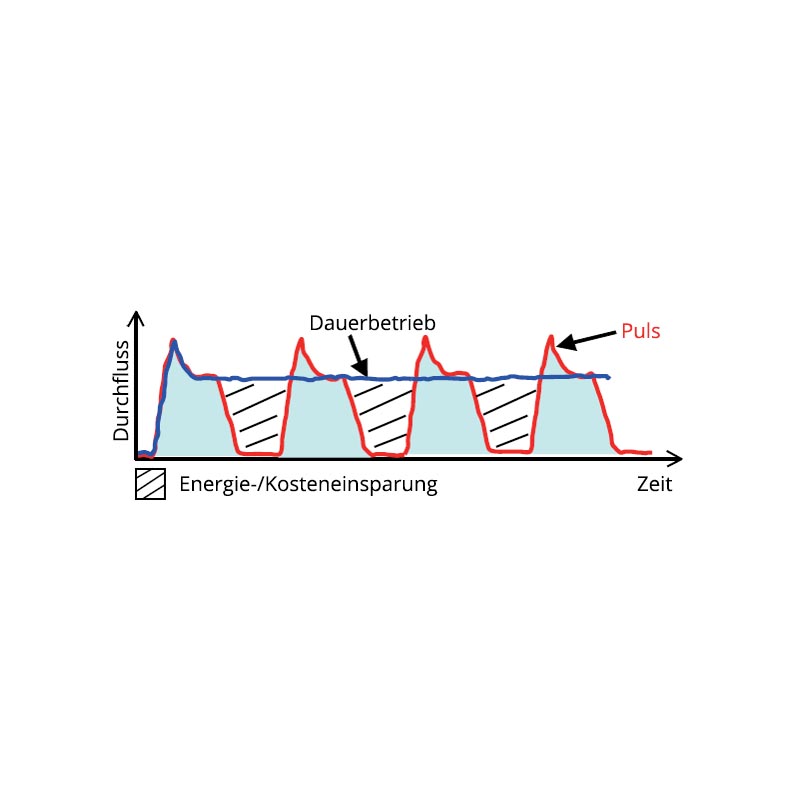

As you can clearly see in the application video, the pressure spikes increase the blowing efficiency while reducing the flow rate.
The Air Saver is only installed in the compressed air circuit and is ready for operation without modification or programming of your system.
As you can clearly see in the application video, the pressure spikes increase the blowing efficiency while reducing the flow rate.
The Air Saver is only installed in the compressed air circuit and is ready for operation without modification or programming of your system.
Significant benefits can be achieved with an Air Saver. The proportion of blown air is almost 50% of the compressed air used in factories. With its switching valve technology, the Air Saver can reduce air consumption by up to 50%!
• Huge savings in air consumption.
• Reduced compressor power consumption.
• Reduced CO2 emissions.
• Large contribution to energy saving targets.
| Connection: | Female thread G 3/8" |
| max. inlet pressure: | 8 bar |
| Working pressure: | 0 – 8 bar |
| Working temperature: | -5°C to +50°C |
| Flow rate in l/min: | 2000 |
| Function: | normally closed |
| Voltage: | No electrical energy required |
| Medium suitability: | Unlubricated air |
| Weight in kg: | 0,86 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
Available downloads:
