The LAM L pneumatic light indicator belongs to the LINE ON LINE® family, which means it can be connected to all the other components in series or in parallel.

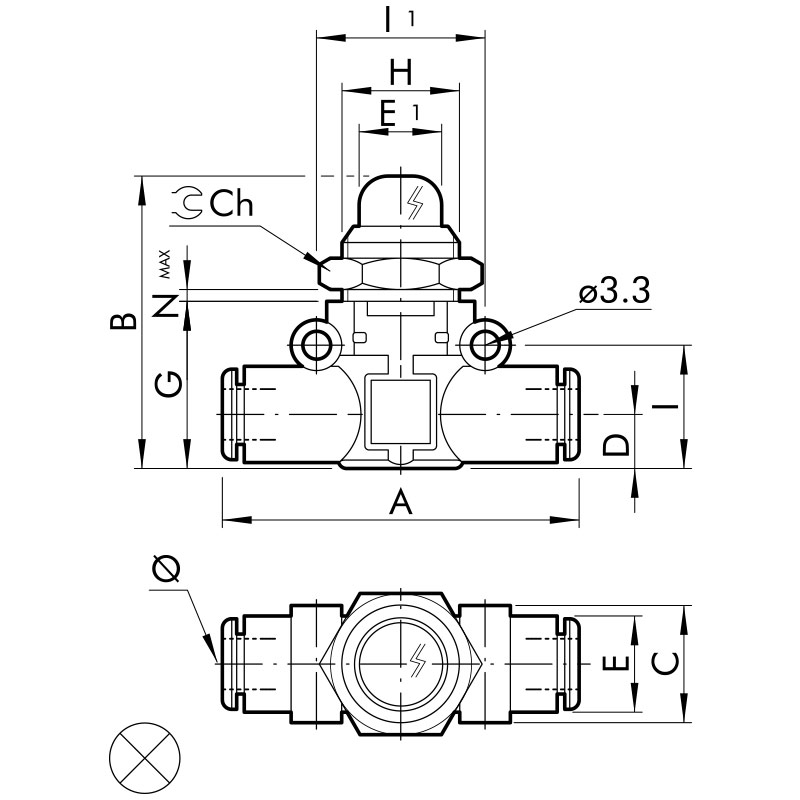

Available in the version for pipe-pipe connection with two FOX push-in fittings, and in the version for thread-pipe connection with a brass nickelplated male thread and a push-in fitting.
When there is no pressure, the clear technopolymer bell looks empty. When there is pressure, a red signal appears. The clear bell can be cleaned using normal detergents or ethyl alcohol, as the technopolymer used is fully compatible.
Available in the version for pipe-pipe connection with two FOX push-in fittings, and in the version for thread-pipe connection with a brass nickelplated male thread and a push-in fitting.
When there is no pressure, the clear technopolymer bell looks empty. When there is pressure, a red signal appears. The clear bell can be cleaned using normal detergents or ethyl alcohol, as the technopolymer used is fully compatible.
| Flow rate in l/min: | 420 Nl/min (at 6.3 bar, ?P=1 bar) |
| Medium suitability: | Filtered, lubricated or unlubricated, compressed air. Lubrication, if used, must be continuous. |
| Working temperature: | -20 – +60 °C |
| Working pressure: | 2 – 10 bar |
| Recommended pipe: | Rilsan PA 11 – Nylon 6 – Polyamide 12 – Polypropylene. |
| Colour with pressure: | red |
| Weight in kg: | 0,026 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
