9067111 – IN-LINE PRESSURE GAUGE thread-pipe 1/4-Ø8

Inline pressure gauge, thread-pipe 1/4-Ø8, 12 bar

€36.37

% €40.41 (10% saved)

Available in 8 days, transport time 1-2 working days

Product information "9067111 – IN-LINE PRESSURE GAUGE thread-pipe 1/4-Ø8 "

The MAN L pressure gauge belongs to the LINE ON LINE® family, which means it can be connected to all the other components in series or in parallel.
Available in the version for pipe-pipe connection with two push-in fittings, and in the version for thread-pipe connection with a brass nickel-plated male thread and a push-in fitting.
Though small in size, this pressure gauge, which is supplied in a metal casing, ensures accurate reading.

Working pressure:	12 bar
Recommended pipe:	Rilsan PA 11 – Nylon 6 – Polyamide 12 – Polypropylene.
Weight in kg:	0,064
Medium suitability:	Filtered, lubricated or unlubricated, compressed air. Lubrication, if used, must be continuous.
Precision:	± 4 % vom Endausschlag
Working temperature:	-20 – +60 °C

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

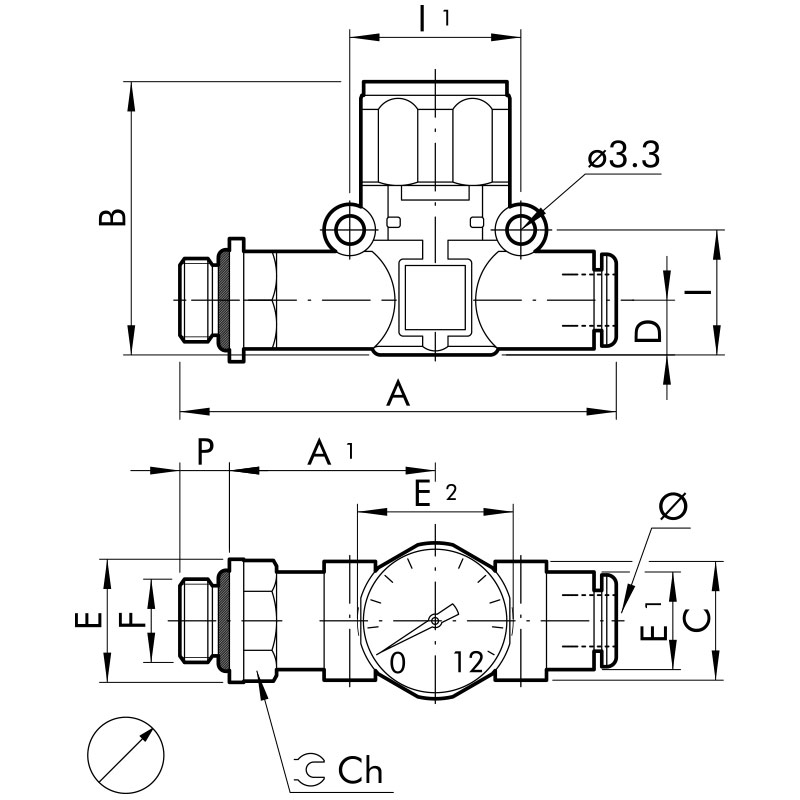

A:	70,6
A1:	34,2
Connection 1:	Male thread G 1/4
Connection 2:	Push-in fitting 8 mm outside calibrated
B:	41
C:	18,7
Ch:	14
D:	9,1
E:	18
E1:	13,8
E2:	23
F:	1/4
I:	18,7
I1:	24
Ø:	8
P:	8
