9067001 – IN-LINE PRESSURE GAUGE pipe-pipe Ø=4

Inline pressure gauge, pipe-pipe Ø=4, 12 bar

€32.20

Available in 8 days, transport time 1-2 working days

Product information "9067001 – IN-LINE PRESSURE GAUGE pipe-pipe Ø=4 "

The MAN L pressure gauge belongs to the LINE ON LINE® family, which means it can be connected to all the other components in series or in parallel.
Available in the version for pipe-pipe connection with two push-in fittings, and in the version for thread-pipe connection with a brass nickel-plated male thread and a push-in fitting.
Though small in size, this pressure gauge, which is supplied in a metal casing, ensures accurate reading.

Working pressure:	12 bar
Recommended pipe:	Rilsan PA 11 – Nylon 6 – Polyamide 12 – Polypropylene.
Weight in kg:	0,027
Medium suitability:	Filtered, lubricated or unlubricated, compressed air. Lubrication, if used, must be continuous.
Precision:	± 4 % vom Endausschlag
Working temperature:	-20 – +60 °C

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

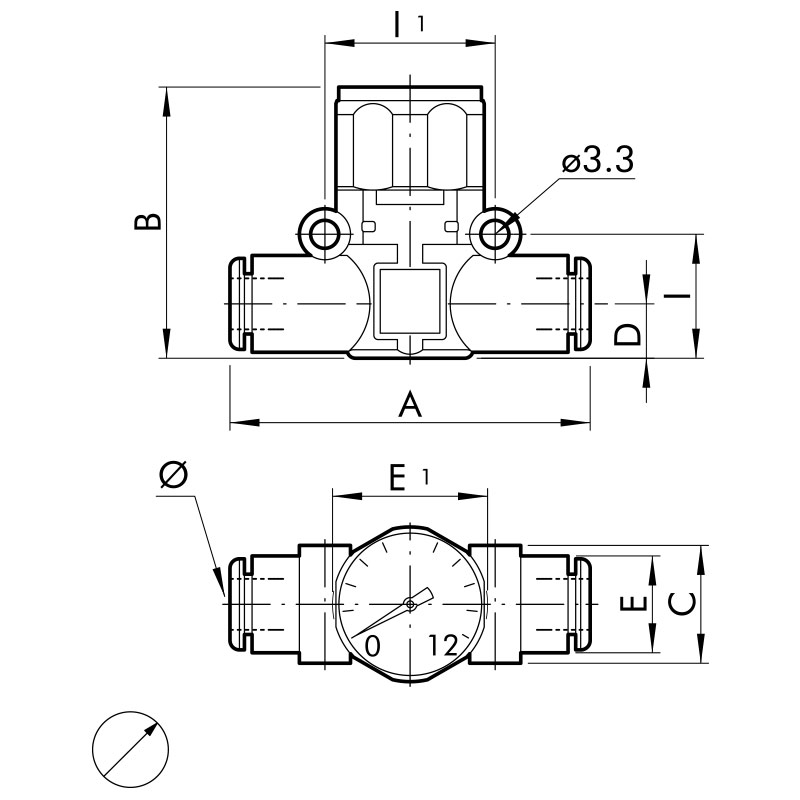

A:	41,8
Connection 1:	Push-in fitting 4 mm outside calibrated
Connection 2:	Push-in fitting 4 mm outside calibrated
B:	36,1
C:	10,7
D:	5,6
E:	10
E1:	23
I:	12,8
I1:	16
Ø:	4
