The STP L stop valve belongs to the LINE ON LINE® family and can be connected in series or in parallel with the other products in the same family.

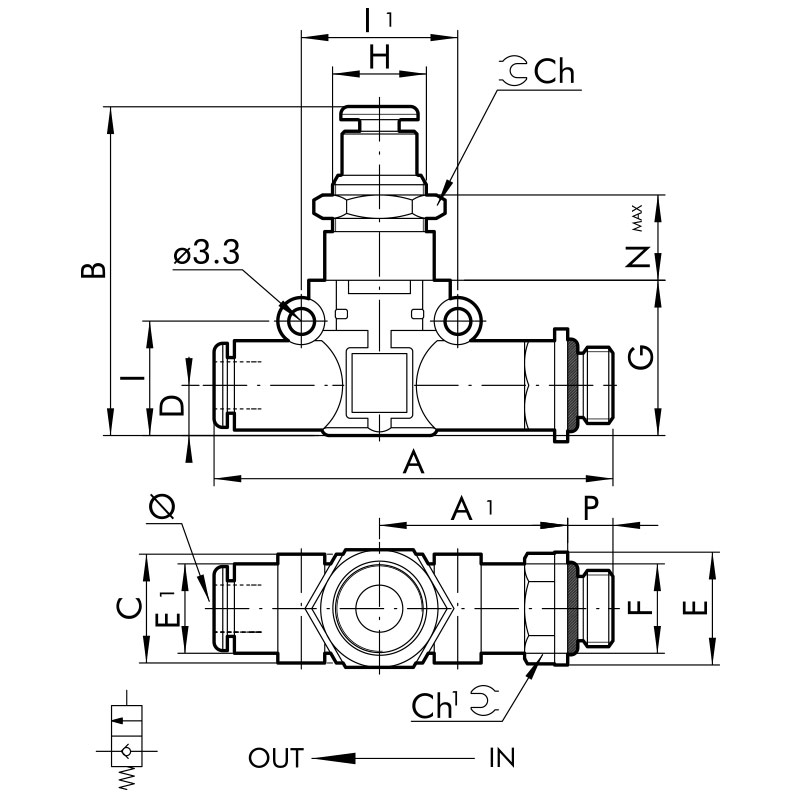

It is available in a version for pipe-pipe connection, which includes two push-in fittings, and a version for thread-pipe connection, which includes a nickel-plated brass male thread and a push-in fitting.
The stop valve is normally mounted on the inlet port of cylinders and allows the flow of air only in the presence of a pneumatic pilot. Cylinder movement ceases if there is a drop in pneumatic pilot pressure
The compressed air port is a push-in fitting for Ø 4 pipe.
This stop valve is available in a unidirectional version, so the flow can be interrupted in one direction, but remains free in the other direction.
This valve can also be used as a unidirectional normally-closed 2/2 pneumatic control valve.
It is available in a version for pipe-pipe connection, which includes two push-in fittings, and a version for thread-pipe connection, which includes a nickel-plated brass male thread and a push-in fitting.
The stop valve is normally mounted on the inlet port of cylinders and allows the flow of air only in the presence of a pneumatic pilot. Cylinder movement ceases if there is a drop in pneumatic pilot pressure
The compressed air port is a push-in fitting for Ø 4 pipe.
This stop valve is available in a unidirectional version, so the flow can be interrupted in one direction, but remains free in the other direction.
This valve can also be used as a unidirectional normally-closed 2/2 pneumatic control valve.
| Medium suitability: | Lubricated or unlubricated filtered air. |
| Working temperature: | -20 – +60 °C |
| Maximum working pressure in bar: | 10 bar |
| Recommended pipe: | Rilsan PA 11 – Nylon 6 – Polyamid 12 – Polypropylen. |
| Weight in kg: | 0,074 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
