9065616 – IN-LINE STOP VALVE pipe-pipe Ø=6

Inline stop valve, pipe-pipe, Ø=6, 10 bar

€37.53

Available in 8 days, transport time 1-2 working days

Product information "9065616 – IN-LINE STOP VALVE pipe-pipe Ø=6 "

The STP L stop valve belongs to the LINE ON LINE® family and can be connected in series or in parallel with the other products in the same family.
It is available in a version for pipe-pipe connection, which includes two push-in fittings, and a version for thread-pipe connection, which includes a nickel-plated brass male thread and a push-in fitting.
The stop valve is normally mounted on the inlet port of cylinders and allows the flow of air only in the presence of a pneumatic pilot. Cylinder movement ceases if there is a drop in pneumatic pilot pressure
The compressed air port is a push-in fitting for Ø 4 pipe.
This stop valve is available in a unidirectional version, so the flow can be interrupted in one direction, but remains free in the other direction.
This valve can also be used as a unidirectional normally-closed 2/2 pneumatic control valve.

Recommended pipe:	Rilsan PA 11 – Nylon 6 – Polyamid 12 – Polypropylen.
Weight in kg:	0,033
Maximum working pressure in bar:	10 bar
Medium suitability:	Lubricated or unlubricated filtered air.
Working temperature:	-20 – +60 °C

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

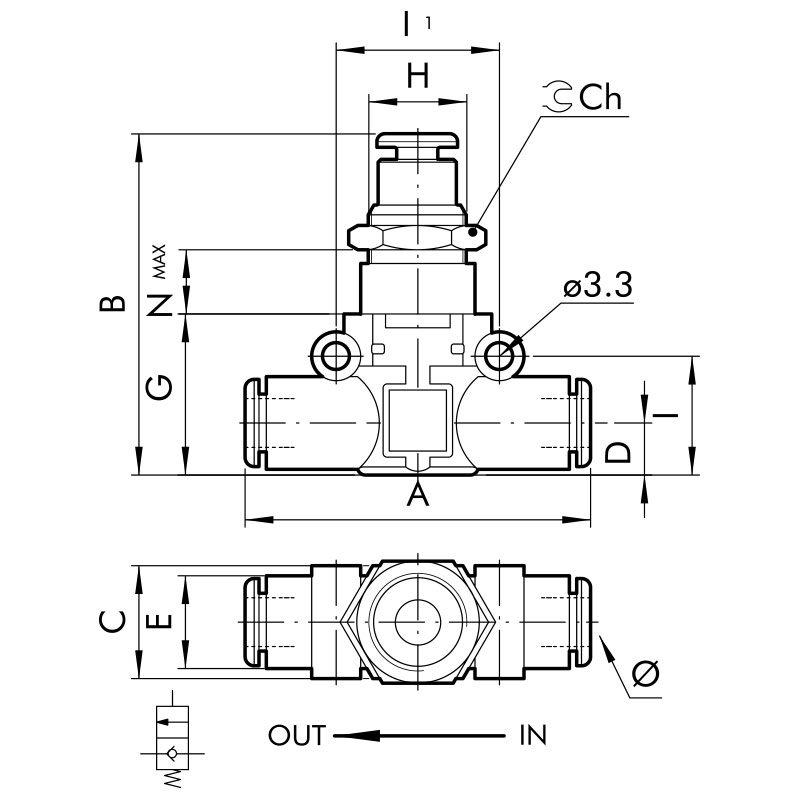

A:	49,4
Connection 1:	Push-in fitting 6 mm outside calibrated
Connection 2:	Push-in fitting 6 mm outside calibrated
B:	43,2
C:	14,7
Ch:	15
D:	6,4
E:	11,4
G:	20
H:	M12x0,75
I:	14,6
I1:	20
N:	4,7
Ø:	6
