9064109 – IN-LINE CHECK VALVE SERIES VNR L thread-pipe 1/4-Ø6

Inline check valves, thread-pipe, 1/4-Ø6, 0,5 – 12 bar, 320 Nl/min flow rate

€19.39

Available in 8 days, transport time 1-2 working days

Product information "9064109 – IN-LINE CHECK VALVE SERIES VNR L thread-pipe 1/4-Ø6 "

The VNR L check valve belongs to the LINE ON LINE® family, which means it can be connected to all the other components in series or in parallel.
Available in the version for pipe-pipe connection with two push-in fittings, and in the version for thread-pipe connection with a brass nickel-plated male thread and a push-in fitting. It is still the only check valve with holes for wall mounting

Working pressure:	0,5 – 12 bar
Flow rate in l/min:	320 Nl/min (at 6.3 bar, ?P=1 bar)
Recommended pipe:	Rilsan PA 11 – Nylon 6 – Polyamide 12 – Polypropylene.
Weight in kg:	0,033
Medium suitability:	Filtered, lubricated or unlubricated, compressed air. Lubrication, if used, must be continuous.
Working temperature:	-20 – +60 °C

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

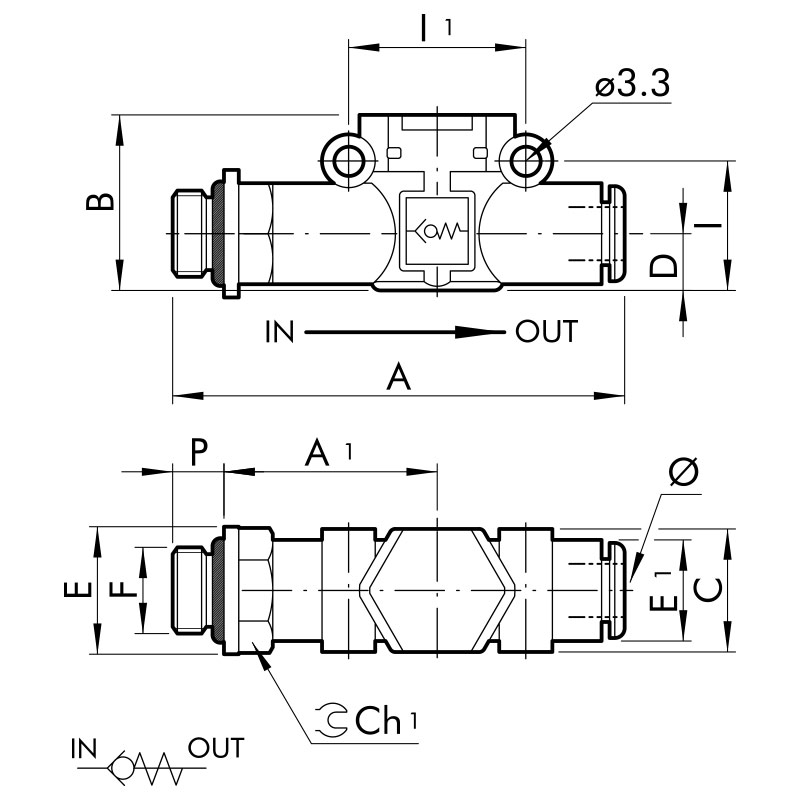

A:	61,5
A1:	28,8
Connection 1:	Male thread G 1/4
Connection 2:	Push-in fitting 6 mm outside calibrated
B:	20
C:	14,7
Ch1:	14
E:	18
E1:	11,4
F:	1/4
I:	14,6
I1:	20
Ø:	6
P:	8
