9064001 – IN-LINE CHECK VALVE SERIES VNR L pipe-pipe Ø=4

Inline check valves, pipe-pipe, Ø4, 0,5 – 12 bar, 80 Nl/min flow rate

€13.98

Available in 8 days, transport time 1-2 working days

Product information "9064001 – IN-LINE CHECK VALVE SERIES VNR L pipe-pipe Ø=4 "

The VNR L check valve belongs to the LINE ON LINE® family, which means it can be connected to all the other components in series or in parallel.
Available in the version for pipe-pipe connection with two push-in fittings, and in the version for thread-pipe connection with a brass nickel-plated male thread and a push-in fitting. It is still the only check valve with holes for wall mounting

Working pressure:	0,5 – 12 bar
Flow rate in l/min:	80 Nl/min (at 6.3 bar, ?P=1 bar)
Recommended pipe:	Rilsan PA 11 – Nylon 6 – Polyamide 12 – Polypropylene.
Weight in kg:	0,01
Medium suitability:	Filtered, lubricated or unlubricated, compressed air. Lubrication, if used, must be continuous.
Working temperature:	-20 – +60 °C

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

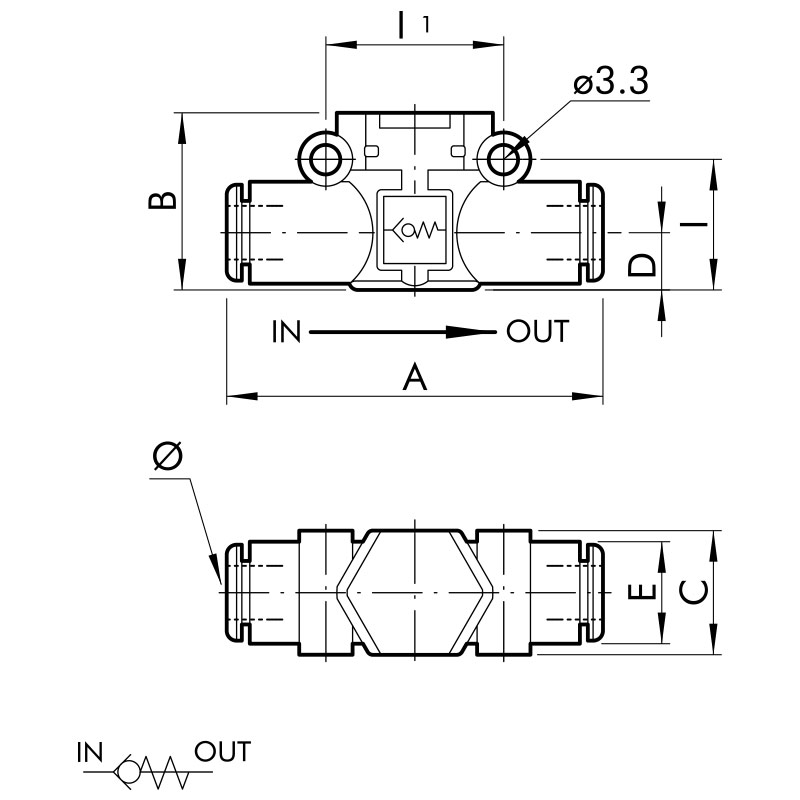

A:	41,8
Connection 1:	Push-in fitting 4 mm outside calibrated
Connection 2:	Push-in fitting 4 mm outside calibrated
B:	17,5
C:	10,7
D:	5,6
E:	10
I:	12,8
I1:	16
Ø:	4
