7996 - Non-return valves in-line

Non-return valves, Non-return valves in-line

From €22.11 *

Available, delivery time:

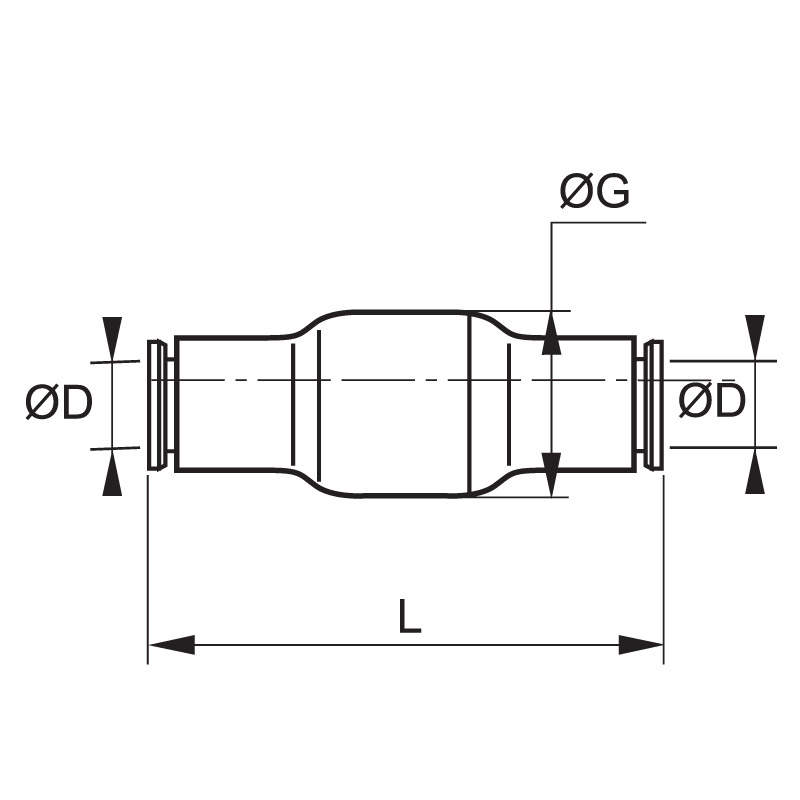

Product name	ØD	G	L	Flow rate in l/min	Price		Quantity
7996 04 00 Non-return valve	4 mm	16	38,5	350	€22.11	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7996 06 00 Non-return valve	6 mm	16	41	670	€23.59	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7996 08 00 Non-return valve	8 mm	19	51,5	1080	€26.64	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7996 10 00 Non-return valve	10 mm	23	63,5	2230	€40.77	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7996 12 00 Non-return valve	12 mm	23	66,5	2300	€58.12	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "7996 - Non-return valves in-line"

Non-return valve with push-in connection:
- allow air to pass in one direction while blocking flow in the other direction
- Perfect sealing, compact and light weight, supply version

Flow rate in l/min:	350
Material:	Engineered polymer
max. temperature in °C:	70
RoHS compliant:	Yes
Material seal:	NBR
Material body:	Engineered polymer
Material body 2:	Brass nickel plated
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Catalog excerpt
