7985 - In-line non-return valves, supply

To be able to use maku Industrie GmbH & Co. KG in full range, we recommend activating Javascript in your browser.

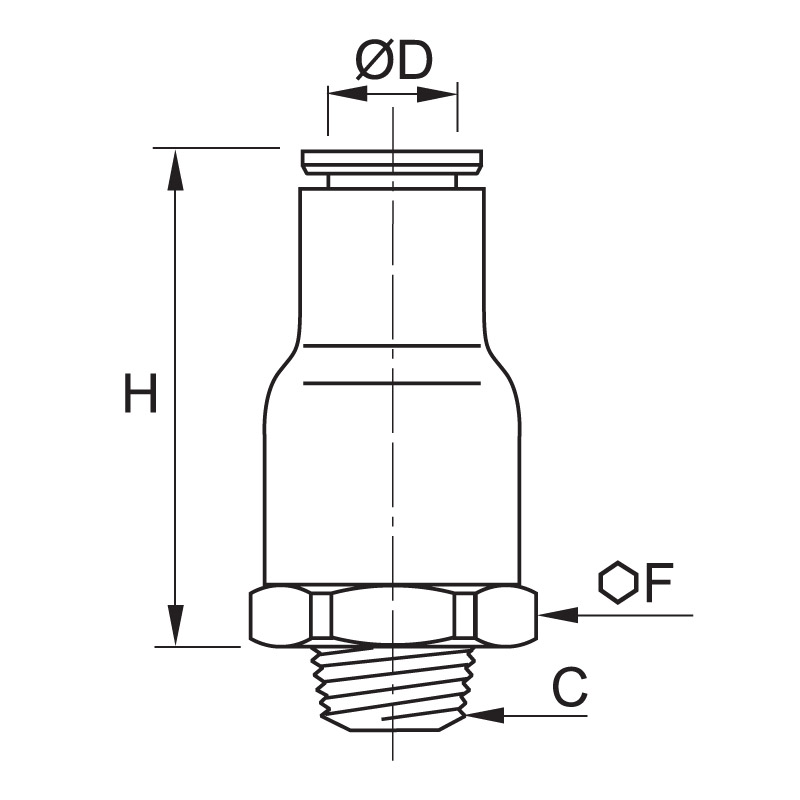

Preview: Technische Zeichnung 7985 04 10

Non-return valves, In-line non-return valves, supply

Product name	ØD	C	F	H	Price		Quantity
7985 04 10 Non-return valve	4 mm	R1/8"	16	28,5	€22.75	Delivery time: 22-23 Workdays
7985 06 10 Non-return valve	6 mm	R1/8"	16	30,5	€23.37	Delivery time: 12-13 Workdays
7985 06 13 Non-return valve	6 mm	R1/4"	16	30,5	€24.35	Delivery time: 22-23 Workdays
7985 08 10 Non-return valve	8 mm	R1/8"	19	36	€26.85	Delivery time: 22-23 Workdays
7985 08 13 Non-return valve	8 mm	R1/4"	19	36	€27.48	Delivery time: 12-13 Workdays
7985 10 17 Non-return valve	10 mm	R3/8"	23	42	€30.29	Delivery time on request
7985 12 17 Non-return valve	12 mm	R3/8"	23	42	€35.59	Delivery time on request
7985 12 21 Non-return valve	12 mm	R1/2"	23	44	€63.25	Delivery time: 12-13 Workdays

Non-return valve with push-in connection, R-threads (flow regulator, supply): - allow air to... more

Close menu

Product information "7985 - In-line non-return valves, supply"

Non-return valve with push-in connection, R-threads (flow regulator, supply):
- allow air to pass in one direction while blocking flow in the other direction
- Perfect sealing, compact and light weight, supply version

Seal coating:	PTFE
Material seal:	NBR
Material body:	Engineered polymer
Material threaded fitting:	Brass nickel plated
Material toothed washer:	Stainless steel
max. temperature in °C:	70
Material:	Engineered polymer
RoHS compliant:	Yes

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
