7984 - In-line non-return valves, supply

To be able to use maku Industrie GmbH & Co. KG in full range, we recommend activating Javascript in your browser.

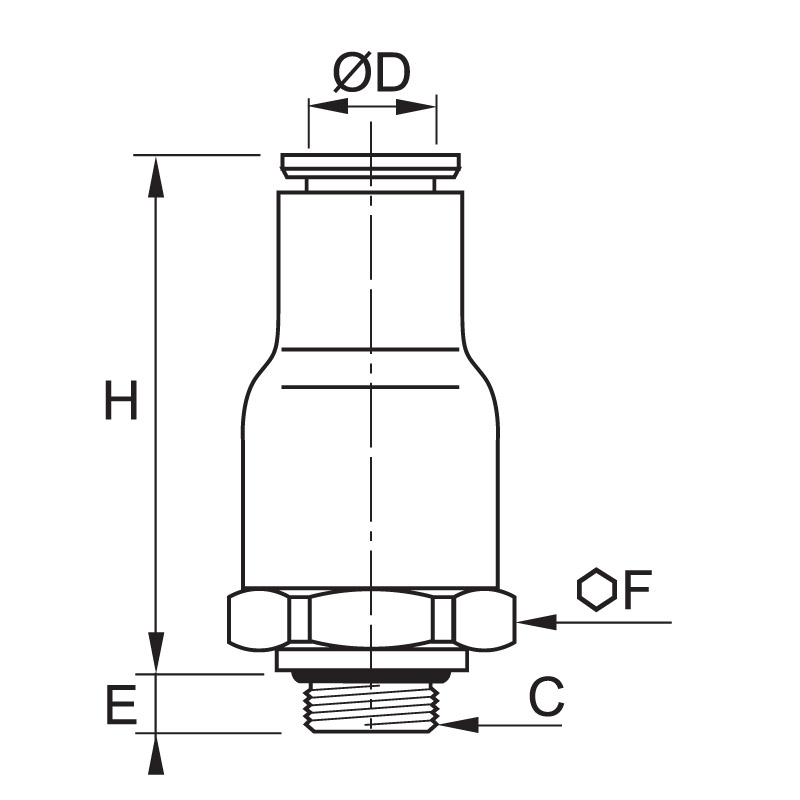

Preview: Technische Zeichnung 7984 04 10

Non-return valves, In-line non-return valves, supply

Product name	ØD	C	E	F	H	Price		Quantity
7984 04 10 Non-return valve	4 mm	G1/8"	5	16	28,5	€22.75	Delivery time: 12-13 Workdays
7984 04 19 Non-return valve	4 mm	M5x0,8	3	9	32	€22.28	Delivery time: 12-13 Workdays
7984 06 10 Non-return valve	6 mm	G1/8"	5	16	30,5	€22.61	Delivery time: 12-13 Workdays
7984 06 13 Non-return valve	6 mm	G1/4"	5,5	16	30,5	€23.55	Delivery time: 22-23 Workdays
7984 08 10 Non-return valve	8 mm	G1/8"	5	19	36	€26.85	Delivery time: 12-13 Workdays
7984 08 13 Non-return valve	8 mm	G1/4"	5,5	19	36	€27.48	Delivery time: 1-2 workdays
7984 10 17 Non-return valve	10 mm	G3/8"	5,5	23	42	€30.29	Delivery time on request
7984 12 17 Non-return valve	12 mm	G3/8"	5,5	23	42	€35.59	Delivery time on request
7984 12 21 Non-return valve	12 mm	G1/2"	7,5	23	44	€42.20	Delivery time on request

Non-return valve with push-in connection, G- and metric threads (flow regulator, supply): -... more

Close menu

Product information "7984 - In-line non-return valves, supply"

Non-return valve with push-in connection, G- and metric threads (flow regulator, supply):
- allow air to pass in one direction while blocking flow in the other direction
- Perfect sealing, compact and light weight, supply version

Material seal:	NBR
Material body:	Engineered polymer
Material threaded fitting:	Brass nickel plated
Material non-return valve:	NBR
Material toothed washer:	Stainless steel
max. temperature in °C:	70
Material:	Engineered polymer
RoHS compliant:	Yes

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
