7932 - Adjustable check valves exhaust

Non-return valves, Adjustable check valves exhaust

From €38.43 *

Available, delivery time:

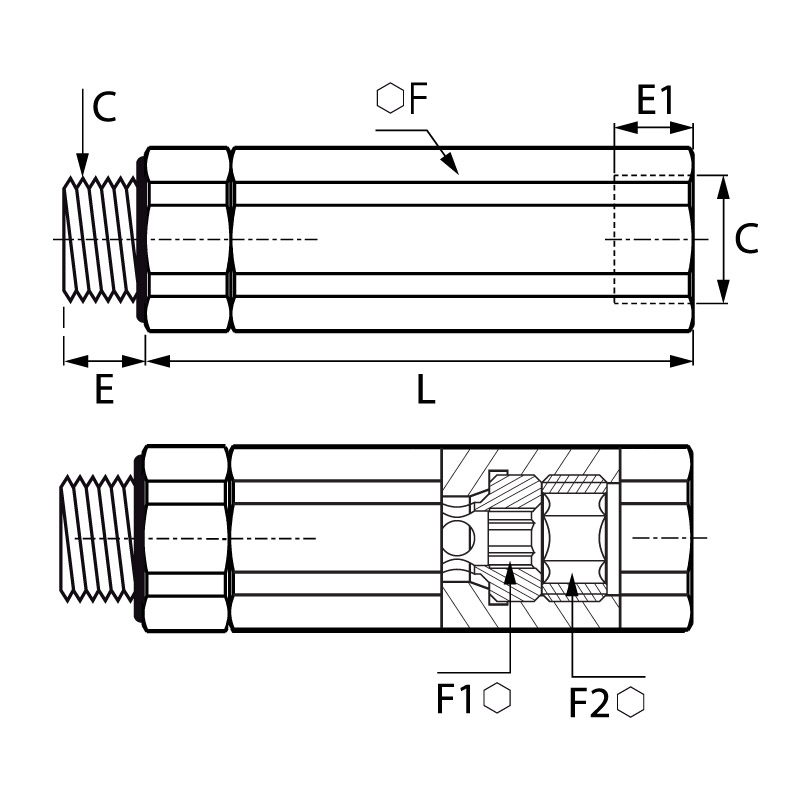

Product name	C	E	E1	F	F1	F2	L	Price		Quantity
7932 10 10 Non-return valve	G1/8"	5,5	8	13	4	6	51,5	€38.43	Available in 25 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7932 17 17 Non-return valve	G3/8"	7,5	11	20	8	10	70	€64.20	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7932 21 21 Non-return valve	G1/2"	9	13	24	10	12	82,5	€92.77	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "7932 - Adjustable check valves exhaust"

Allows air to pass in one direction while blocking flow in the other direction. Integrated function for accurate opening pressure adjustment. Nickel-plated brass construction for resistance to severe environments.

Material:	Brass nickel plated chemical fda brass
max. temperature in °C:	80
min. temperature in °C:	-20
RoHS compliant:	Yes
Material seal:	FKM
Material spring:	Stainless steel
Material body:	Brass nickel plated chemical fda brass
Material threaded fitting:	Brass nickel plated chemical fda brass
Material seat seal:	NBR
Material stem:	Brass
Material union nut:	Brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
