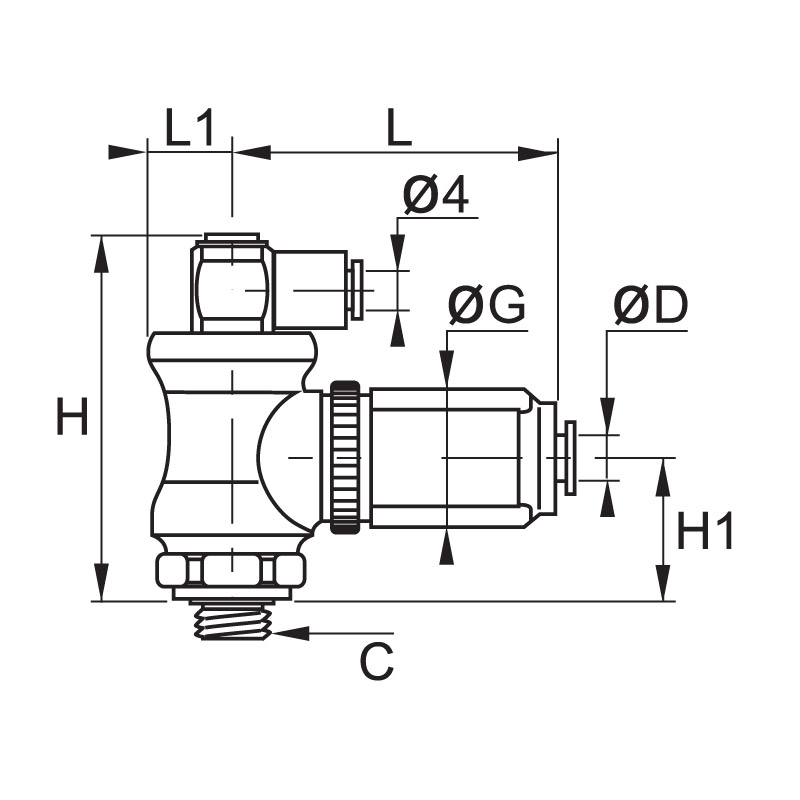

Blocking fitting blocker / flow regulator with push-in connection:
- Double function and compactness.
- Strong construction and reliability
- Optimum flow capactity in small spaces
- Fully orientable in order to facilitate system design and connection
- excellent resistance to aggressive environments (saline atmosphere and sparks)
- Double function and compactness.
- Strong construction and reliability
- Optimum flow capactity in small spaces
- Fully orientable in order to facilitate system design and connection
- excellent resistance to aggressive environments (saline atmosphere and sparks)
| Material seal: | NBR |
| Material body: | Brass nickel plated |
| Material body 2: | Engineered polymer |
| Material threaded fitting: | Brass nickel plated |
| Material locknut: | Brass nickel plated |
| Material diaphragm: | NBR |
| Material toothed washer: | Stainless steel |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 70 |
| Material: | Brass nickel plated |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
