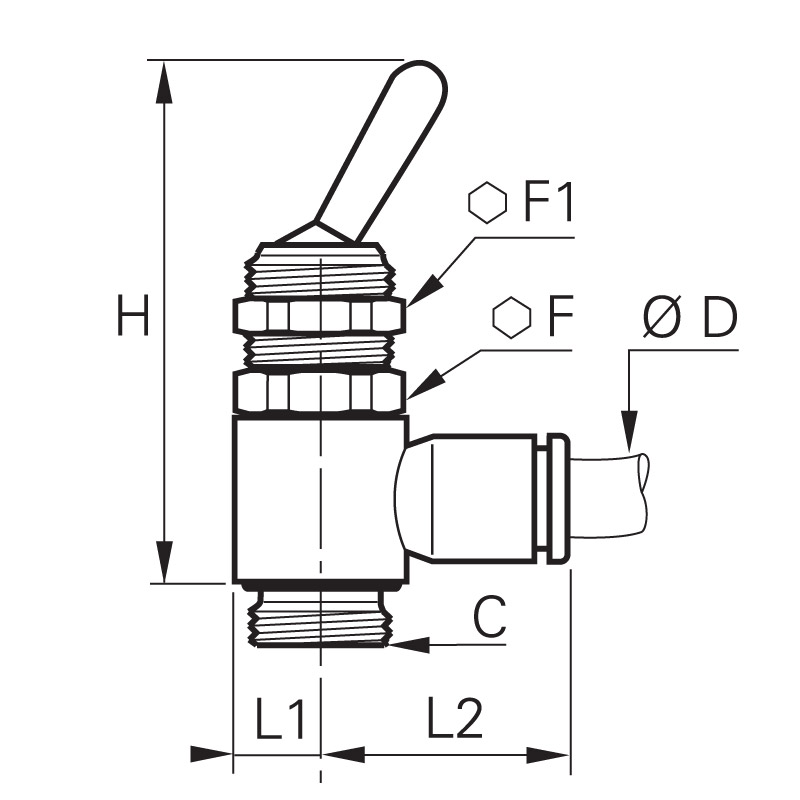

2/2-way manual switch operated valve with push-in connection:
- Opening/closing/vent
- Can be used whenever the system has to be frequently vented
- Mounted directly on the cylinder (open/closed /exhaust)
- G- and metric threads
- Opening/closing/vent
- Can be used whenever the system has to be frequently vented
- Mounted directly on the cylinder (open/closed /exhaust)
- G- and metric threads
| Material seal: | NBR |
| Material adjusting spindle: | Brass nickel plated |
| Material body: | Engineered polymer |
| Material locknut: | Brass nickel plated |
| Material lever: | Brass nickel plated |
| Material toothed washer: | Stainless steel |
| min. temperature in °C: | -10 |
| max. temperature in °C: | 80 |
| Vacuum resistance in mm Hg: | 755 |
| Material: | Engineered polymer |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
