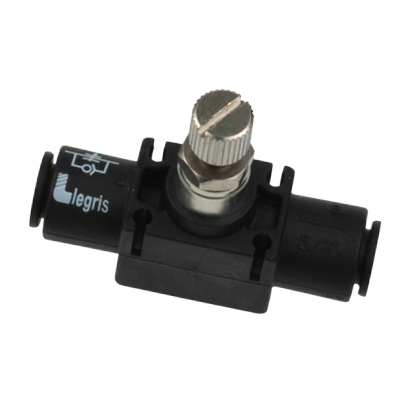

Non-return throttle valve, threaded, made of plastic, for line installation:
- with push-in connection, uni-directional
- prevention against unwanted adjustment with a lock nut
- small and lightweight for easy installation
- versatile
- with push-in connection, uni-directional
- prevention against unwanted adjustment with a lock nut
- small and lightweight for easy installation
- versatile
| Maximum working pressure in bar: | 10 |
| Material seal: | NBR |
| Material adjusting spindle: | Brass nickel plated |
| Material body: | Engineered polymer |
| Material locknut: | Brass nickel plated |
| Material toothed washer: | Stainless steel |
| max. temperature in °C: | 70 |
| RoHS compliant: | Yes |
| Weight in kg: | 0,048 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
Available downloads:
3D Modell
