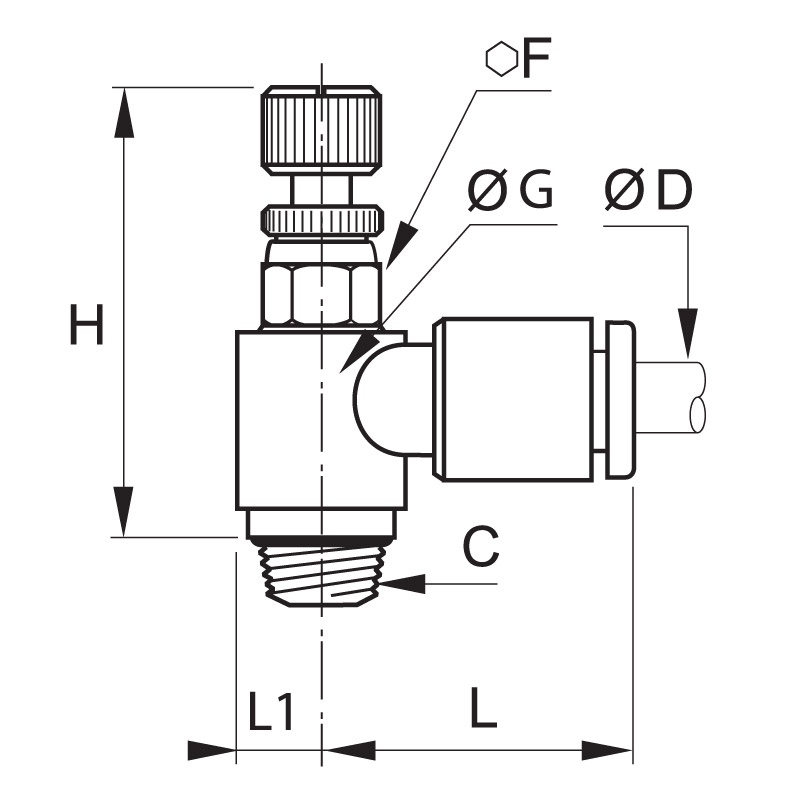

Non-return throttle valve, threaded, made of plastic:
- swivel outlet banjo with external screw and push-in connection, R- or NPT-thread
- external screw for throtteling supply air
- reliable, precise and progressive adjustment
- lock nut guaranteeing stability of adjustment
- perfectly suited to solve the most difficult connection issues thanks to its orientability
- perfectly adapted to solve the most difficult connection issues thanks to its orientability and small size
- swivel outlet banjo with external screw and push-in connection, R- or NPT-thread
- external screw for throtteling supply air
- reliable, precise and progressive adjustment
- lock nut guaranteeing stability of adjustment
- perfectly suited to solve the most difficult connection issues thanks to its orientability
- perfectly adapted to solve the most difficult connection issues thanks to its orientability and small size
| Seal coating: | PTFE |
| Material seal: | NBR |
| Material adjusting spindle: | Brass nickel plated |
| Material body: | Engineered polymer |
| Material threaded fitting: | Brass nickel plated |
| Material locknut: | Brass nickel plated |
| Material toothed washer: | Stainless steel |
| max. temperature in °C: | 70 |
| Material: | Engineered polymer |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
