Product name C F F1 H min H max K L L1 T Price Quantity
7416 10 10 Pressure reducer G1/8" 17 19 49 57 4 74 35 18,5

€68.65

This article is currently not available!

7416 13 13 Pressure reducer G1/4" 17 19 49 57 4 83 44 18,5

€79.98

This article is currently not available!

7416 17 17 Pressure reducer G3/8" 22 27 61 70 5 90 44 22,5

€92.11

This article is currently not available!

7416 21 21 Pressure reducer G1/2" 27 30 75 86 7 119 61 22,5

€115.50

This article is currently not available!

Product information "7416 - Pressure reducers in-line"

Legris Pressure reducer: An energy-saving tool by optimizing the pressure required by your cylinders. Visual control of saving level: maximum, improved or standard. Manual adjustment via a 6 mm hexagonal key or using a manual ratchet control (sold separately part No 7000 00 00).
Material: Brass nickel plated
max. temperature in °C: 60
min. temperature in °C: -15
RoHS compliant: Yes
Material seal: NBR
Material body: Brass nickel plated
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

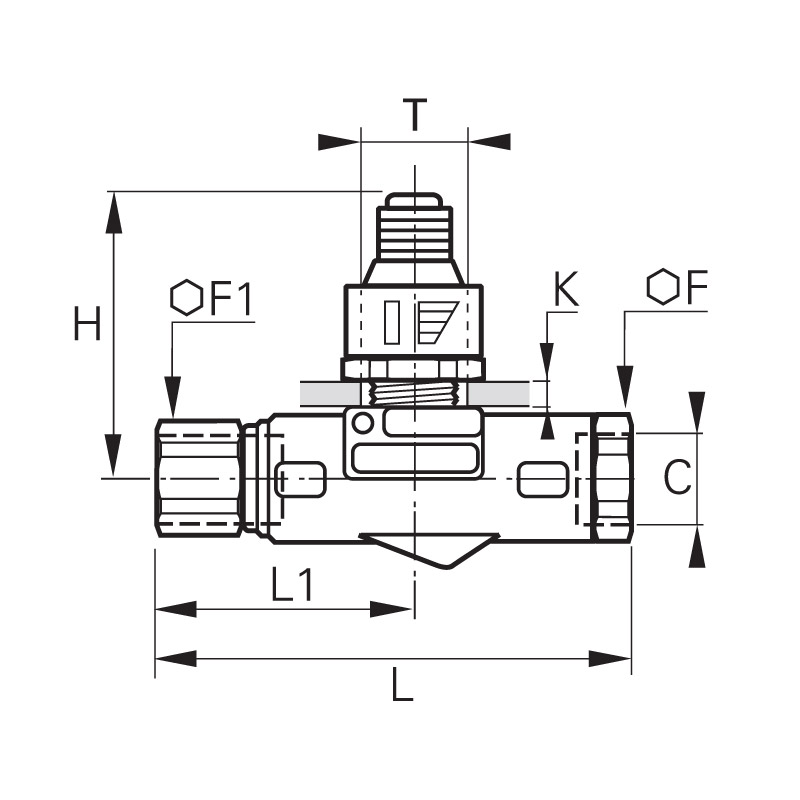

Technische Zeichnung 7416 21 21
