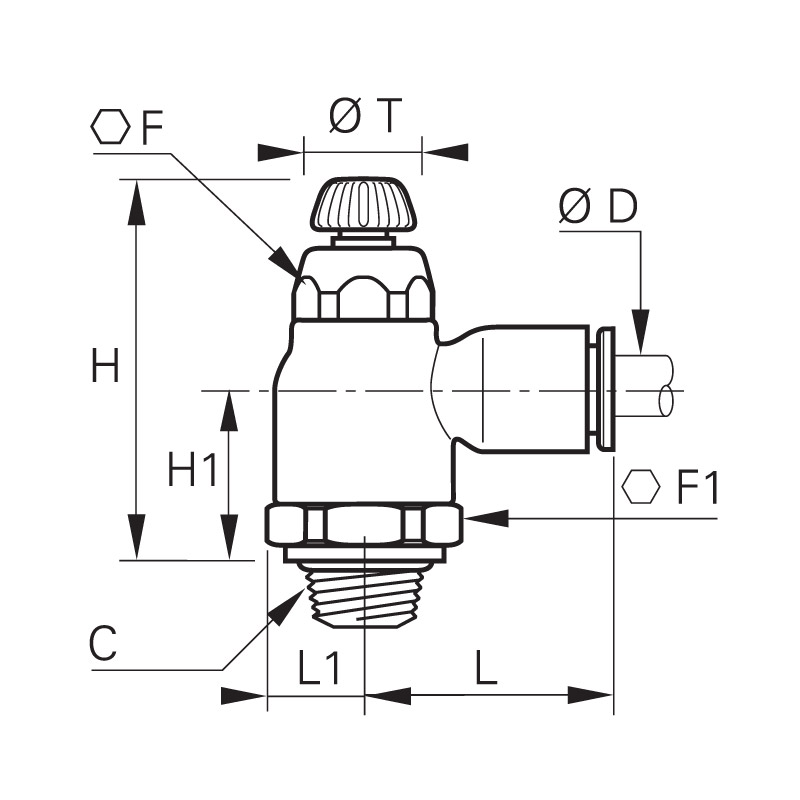

throttle valve, threaded, made of plastic, R-threads:
- compact banjo with external screw
- bi-directional: Throtteling of air supply and exhaust, no non-return function.
- reliable, precise and progressive adjustment
- lock nut guaranteeing stability of adjustment
- for use in all pneumatic installations due to their high performance capability and small size
- compact banjo with external screw
- bi-directional: Throtteling of air supply and exhaust, no non-return function.
- reliable, precise and progressive adjustment
- lock nut guaranteeing stability of adjustment
- for use in all pneumatic installations due to their high performance capability and small size
| Seal coating: | PTFE |
| Material seal: | NBR |
| Material adjusting spindle: | Brass nickel plated |
| Material body: | Engineered polymer |
| Material threaded fitting: | Brass nickel plated |
| Material locknut: | Brass nickel plated |
| Material toothed washer: | Stainless steel |
| max. temperature in °C: | 70 |
| Material: | Engineered polymer |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
