Product name C ØD F F1 G H min H max H1 H2 L Price Quantity
7040 06 10 Flow regulator G1/8" 6 mm 16 10 10,5 38 44 16 18 23,5

€24.36

Available in 10 days, transport time 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7040 06 13 Flow regulator G1/4" 6 mm 16 10 10,5 36,5 42,5 16 16,5 23,5

€25.55

Available in 10 days, transport time 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7040 08 10 Flow regulator G1/8" 8 mm 19 14 13,5 41,5 48 23 19 28

€26.13

Available, delivery time: 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7040 08 13 Flow regulator G1/4" 8 mm 19 14 13,5 41,5 48 23 19,5 28

€26.30

Available, delivery time: 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7040 08 17 Flow regulator G3/8" 8 mm 19 14 13,5 41,5 48 23 17,5 28

€31.30

Available in 20 days, transport time 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7040 10 13 Flow regulator G1/4" 10 mm 23 17 16 45,5 53,5 26,5 21 35

€34.41

Available in 20 days, transport time 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7040 10 17 Flow regulator G3/8" 10 mm 23 17 16 45,5 54 26,5 21,5 35

€39.41

Available in 10 days, transport time 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7040 12 17 Flow regulator G3/8" 12 mm 23 17 19 45,5 54 30,5 21,5 38

€43.32

Available in 20 days, transport time 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
7040 12 21 Flow regulator G1/2" 12 mm 24 17 19 45,5 54 30,5 21 38

€45.23

Available in 20 days, transport time 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "7040 - Compact Flow regulators, exhaust, made of polymer"

Non-return throttle valve, threaded, made of plastic:
- bajo with push-in connection, threaded
- external screw for throtteling exhaust air
- reliable, precise and progressive adjustment
- lock nut guaranteeing stability of adjustment
- perfectly suited to solve the most difficult connection issues thanks to its orientability
Material: Engineered polymer
max. temperature in °C: 70
RoHS compliant: Yes
Material seal: NBR
Material adjusting spindle: Brass nickel plated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material locknut: Brass nickel plated
Material toothed washer: Stainless steel
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

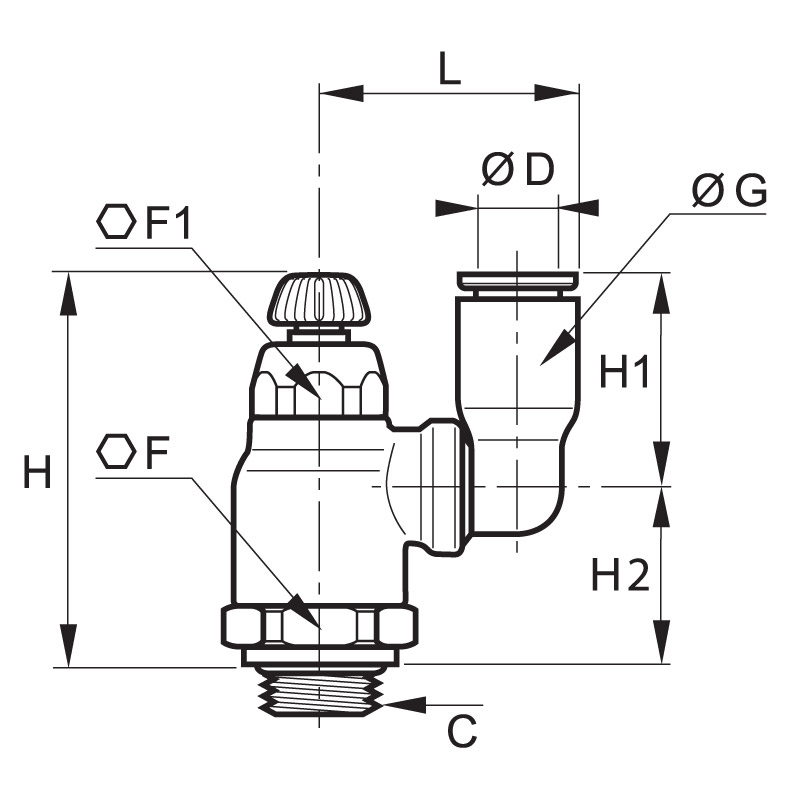

Technische Zeichnung 7040 06 10
