6882 - Equal and unequal plug-in elbows CleanFit®

CLEANFIT - Life Sciences & Clean Rooms, Equal and unequal plug-in elbows CleanFit®, Biobased raw materials

From €3.81 *

Available, delivery time:

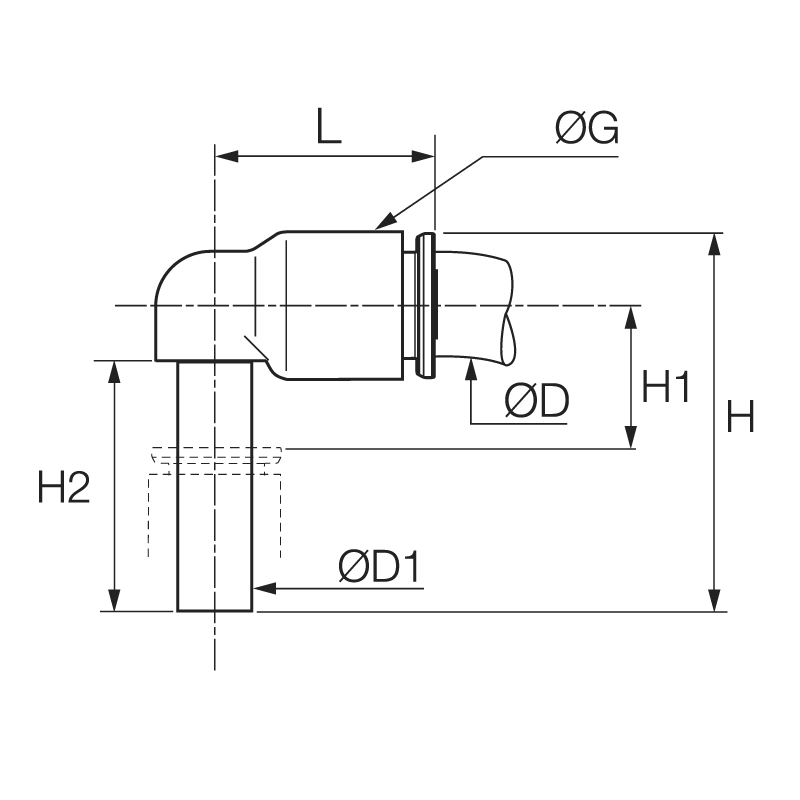

Product name	ØD	ØD1	G	H	H1	H2	L	Price		Quantity
6882 04 00 Equal and unequal plug-in elbow	4 mm	4 mm	8,5	23	6	15,5	15	Price on request	Available in 70 days, transport time 1-2 working days
6882 04 06 Equal and unequal plug-in elbow	4 mm	6 mm	10,5	26,5	7	17	16,5	€6.96	Available in 70 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6882 06 00 Equal and unequal plug-in elbow	6 mm	6 mm	10,5	26,5	7	17	17	€5.03	Available in 30 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6882 06 04 Equal and unequal plug-in elbow	6 mm	4 mm	10,5	25	7	15,5	17	€3.81	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6882 06 08 Equal and unequal plug-in elbow	6 mm	8 mm	13,5	33,5	8	21,5	22,5	€6.10	Available in 30 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6882 08 00 Equal and unequal plug-in elbow	8 mm	8 mm	13,5	33,5	8	21,5	22,5	€6.06	Available in 30 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6882 10 00 Equal and unequal plug-in elbow	10 mm	10 mm	16	39	9,5	24,5	26,5	€5.60	This article is currently not available!
6882 12 00 Equal and unequal plug-in elbow	12 mm	12 mm	19	44,5	10	27	31	€6.90	This article is currently not available!

Product information "6882 - Equal and unequal plug-in elbows CleanFit®"

Connection of tubing at a 90° angle to a push-in fitting or cartridge
Robust eco-conception, aesthetic design and superior level of cleaneliness for a perfect compatibility
Airtight, antistatic packaging
Full flow
100 % leak-tested, date coding to guarantee quality and traceability
ASTM G93-03 B 300, ISO 15001, VDI 2083
Conform to CGA G4.1 and DI93/42/EC

Material:	Biobased raw materials
Maximum working pressure in bar:	15
max. temperature in °C:	95
min. temperature in °C:	-10
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal:	EPDM
Material body:	Biobased raw materials
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Catalog excerpt
