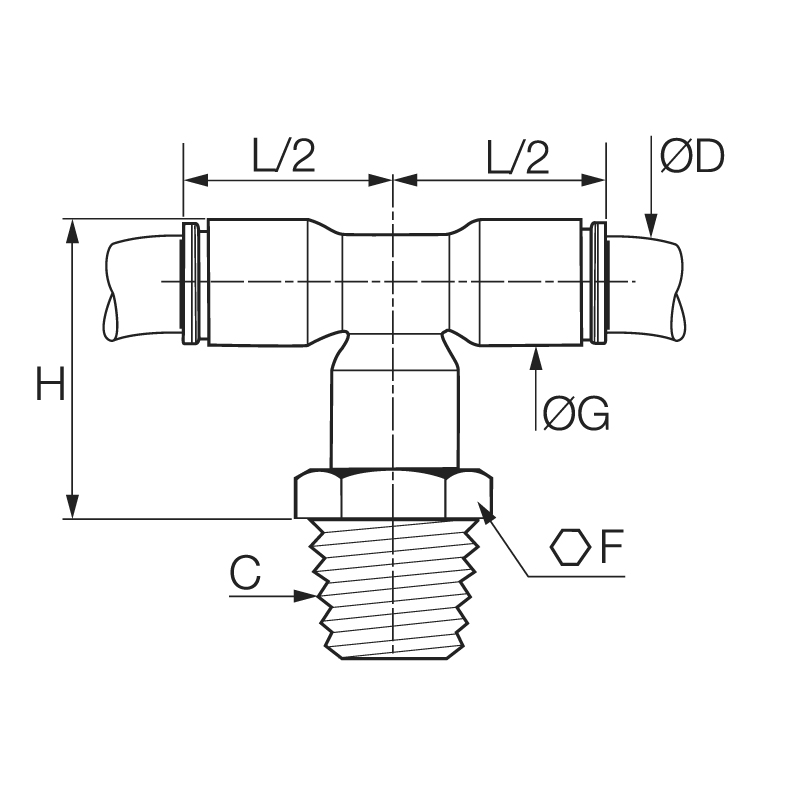

Product information "6878 - Stud branch tees CleanFit®"
In line connection of 2 tubes and at a 90° angle to a threaded port Robust eco-conception, aesthetic design and superior level of cleaneliness for a perfect compatibility Airtight, antistatic packaging Full flow 100 % leak-tested, date coding to guarantee quality and traceability ASTM G93-03 B 300, ISO 15001, VDI 2083 Conform to CGA G4.1 and DI93/42/EC
Material:
Biobased raw materials
Maximum working pressure in bar:
15
max. temperature in °C:
95
min. temperature in °C:
-10
RoHS compliant:
Yes
Vacuum resistance in mm Hg:
755
Material seal:
EPDM
Material body:
Biobased raw materials
Material threaded fitting:
Brass nickel plated chemical fda brass
Material toothed washer:
Stainless steel
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
