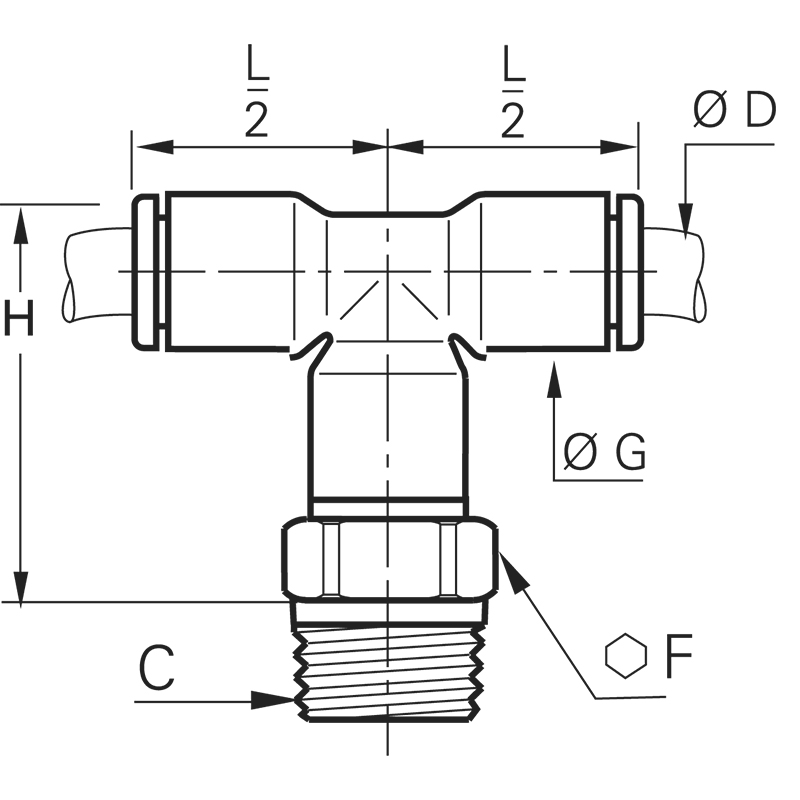

Connection of 2 tubes at a 90° angle to a threaded port. Tightened on the top of the fitting with a flat spanner or socket wrench
Robust eco-conception, aesthetic design and superior level of cleaneliness for a perfect compatibility
Airtight, antistatic packaging
Full flow
100 % leak-tested, date coding to guarantee quality and traceability
ASTM G93-03 B 300, ISO 15001, VDI 2083
Conform to CGA G4.1 and DI93/42/EC
Robust eco-conception, aesthetic design and superior level of cleaneliness for a perfect compatibility
Airtight, antistatic packaging
Full flow
100 % leak-tested, date coding to guarantee quality and traceability
ASTM G93-03 B 300, ISO 15001, VDI 2083
Conform to CGA G4.1 and DI93/42/EC
| Maximum working pressure in bar: | 15 |
| Material seal: | EPDM |
| Material body: | Biobased raw materials |
| Material threaded fitting: | Brass nickel plated chemical fda brass |
| Material toothed washer: | Stainless steel |
| min. temperature in °C: | -10 |
| max. temperature in °C: | 95 |
| Vacuum resistance in mm Hg: | 755 |
| Material: | Biobased raw materials |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
