6806 - Equal and unequal tube-to-tube connectors CleanFit®

CLEANFIT - Life Sciences & Clean Rooms, Equal and unequal tube-to-tube connectors CleanFit®, Biobased raw materials

From €5.09 *

Available, delivery time:

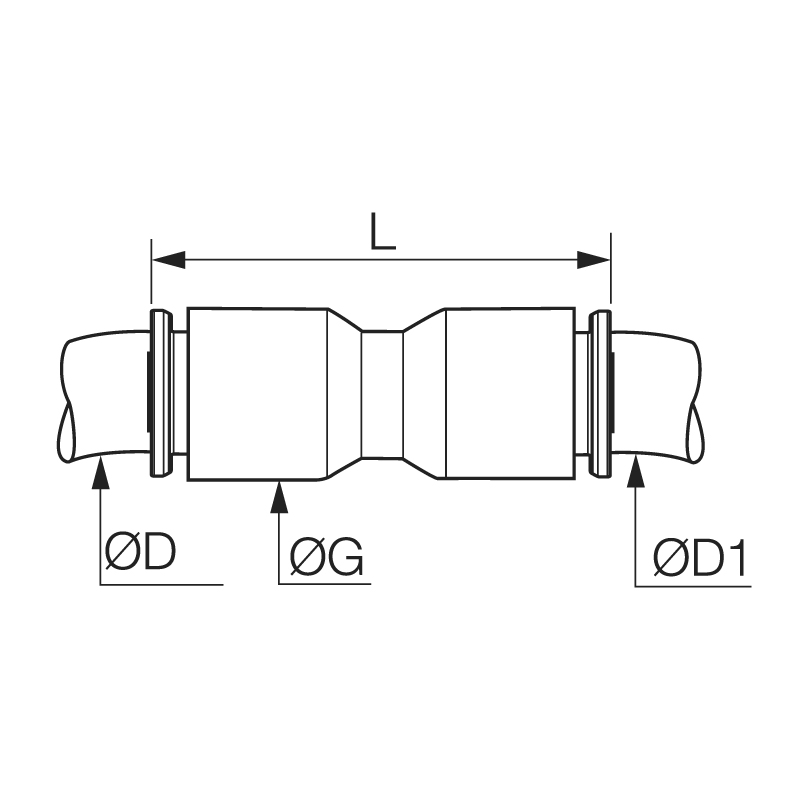

Product name	ØD	ØD1	G	L	Price		Quantity
6806 04 00 Equal and unequal tube-to-tube connector	4 mm	4 mm	8,5	26,5	€6.51	Available in 30 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6806 04 06 Equal and unequal tube-to-tube connector	4 mm	6 mm	10,5	29	€5.09	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6806 06 00 Equal and unequal tube-to-tube connector	6 mm	6 mm	10,5	30	€6.10	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6806 06 08 Equal and unequal tube-to-tube connector	6 mm	8 mm	13,5	37	€5.89	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6806 08 00 Equal and unequal tube-to-tube connector	8 mm	8 mm	13,5	37	€7.47	Available in 30 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6806 08 10 Equal and unequal tube-to-tube connector	8 mm	10 mm	16	42	€6.30	This article is currently not available!
6806 10 00 Equal and unequal tube-to-tube connector	10 mm	10 mm	16	42	€9.73	Available in 30 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6806 10 12 Equal and unequal tube-to-tube connector	10 mm	12 mm	19	50	€10.22	This article is currently not available!
6806 12 00 Equal and unequal tube-to-tube connector	12 mm	12 mm	19	50,5	Price on request	Available in 30 days, transport time 1-2 working days

Product information "6806 - Equal and unequal tube-to-tube connectors CleanFit®"

In-line connection of 2 tubes of equal or different diameters
Robust eco-conception, aesthetic design and superior level of cleaneliness for a perfect compatibility
Airtight, antistatic packaging
Full flow
100 % leak-tested, date coding to guarantee quality and traceability
ASTM G93-03 B 300, ISO 15001, VDI 2083
Conform to CGA G4.1 and DI93/42/EC

Material:	Biobased raw materials
Maximum working pressure in bar:	15
max. temperature in °C:	95
min. temperature in °C:	-10
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal:	EPDM
Material body:	Biobased raw materials
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
