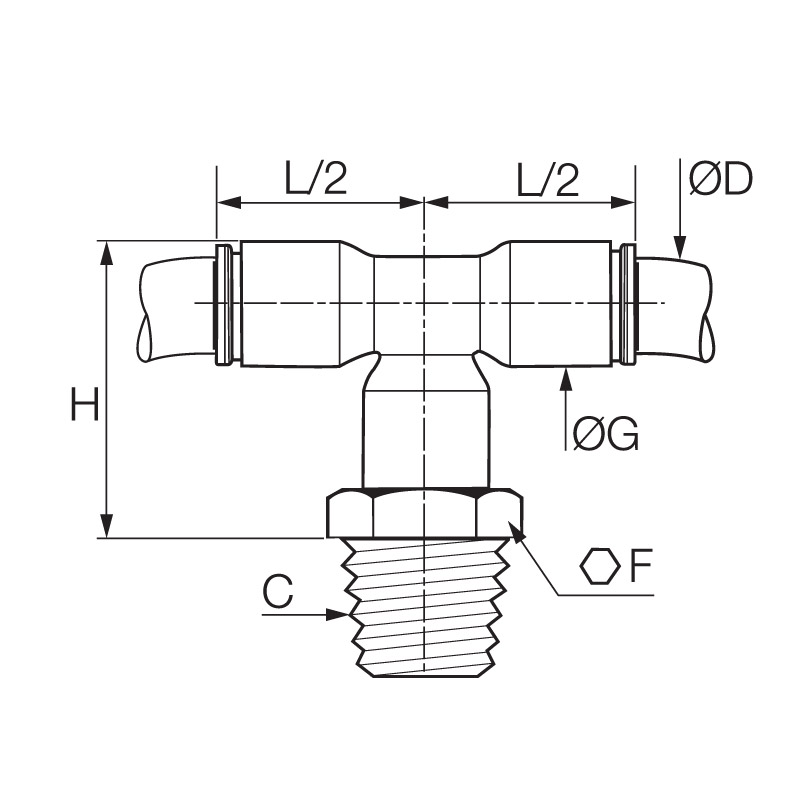

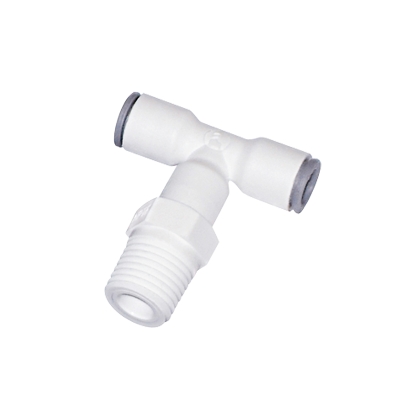

Connection of 2 tubes at a 90° angle to a threaded port. Swiveling.
Tightened on the top end of the fitting with a flat spanner or socket wrench.
Solid construction, compact, aesthetic and unobtrusive for better connection.
Full air flow.
100% leak-tested in production
LIQUIfit connection systems are KTW - W270 - NSF and FDA certified.
| Material seal: | EPDM |
| Material body: | Biobased raw materials |
| Material threaded fitting: | Biobased raw materials |
| Material toothed washer: | Stainless steel |
| Special feature: | schwenkbar |
| RoHS compliant: | Yes |
| Weight in kg: | 0,004 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
Available downloads:
3D Modell
