6505 - Male stud couplings LIQUIfit®
From €2.52 *
Available, delivery time:

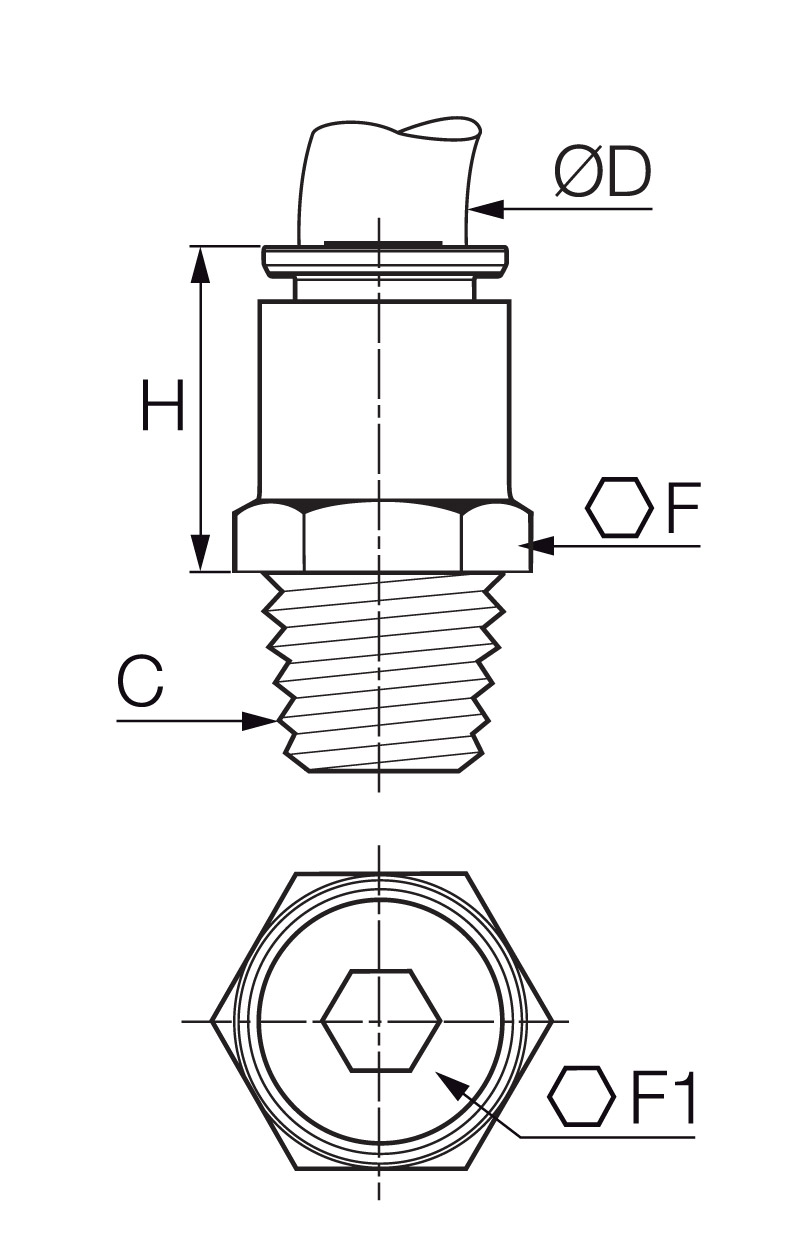

| Product name | C | ØD | F | F1 | H | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
| 6505 04 10WP2 Male stud coupling | R1/8" | 4 mm | 11 | 3 | 18 | €3.21 | Available in 10 days, transport time 1-2 working days | |
| 6505 04 13WP2 Male stud coupling | R1/4" | 4 mm | 14 | 3 | 18 | €3.56 | Available in 40 days, transport time 1-2 working days | |
| 6505 06 10WP2 Male stud coupling | R1/8" | 6 mm | 11 | 4 | 18 | €2.56 | Available in 10 days, transport time 1-2 working days | |
| 6505 06 13WP2 Male stud coupling | R1/4" | 6 mm | 14 | 4 | 18 | €3.22 | Available in 10 days, transport time 1-2 working days | |
| 6505 08 10WP2 Male stud coupling | R1/8" | 8 mm | 17 | 6 | 20 | €3.89 | Available in 10 days, transport time 1-2 working days | |
| 6505 08 13WP2 Male stud coupling | R1/4" | 8 mm | 14 | 6 | 20 | €2.88 | Available in 20 days, transport time 1-2 working days | |
| 6505 56 10WP2 Male stud coupling | R1/8" | 1/4" | 11 | 5 | 17 | €2.52 | Available in 30 days, transport time 1-2 working days | |
| 6505 56 13WP2 Male stud coupling | R1/4" | 1/4" | 14 | 5 | 17 | €2.88 | Available in 10 days, transport time 1-2 working days |
Product information "6505 - Male stud couplings LIQUIfit®"
In-line connection of tubing to a threaded port.
External tightening with a flat spanner or a socket wrench, internal adjustment with an Allen key.
compact.
Full air flow.
100% leak-tested in production
LIQUIfit connection systems are KTW - W270 - NSF and FDA certified.
| Material: | Biobased raw materials |
|---|---|
| RoHS compliant: | Yes |
| Material seal: | EPDM |
| Material body: | Biobased raw materials |
| Material toothed washer: | Stainless steel |
