6380 - 45° equal elbows LIQUIfit®

LIQUIFIT - water and food, 45° equal elbows LIQUIfit®, Biobased raw materials

From €4.13 *

Available, delivery time:

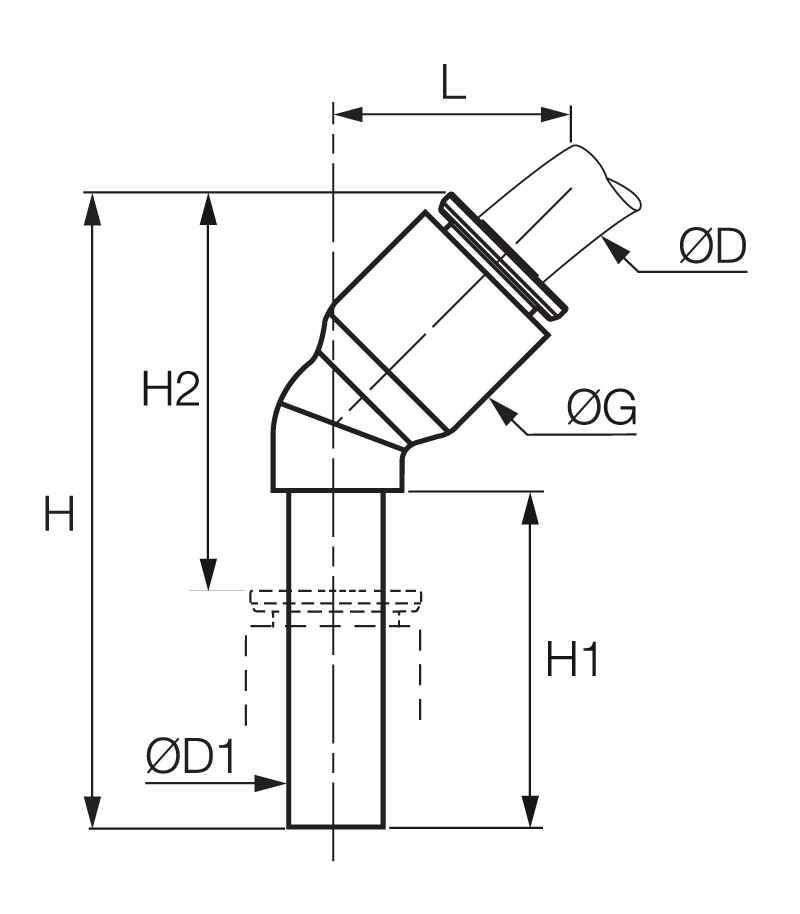

Product name	ØD	ØD1	G	H	H1	H2	L	Price		Quantity
6380 04 00WP2 45° equal & unequal elbow	4 mm	4 mm	8,5	33,5	19	21	13	€4.13	Available in 45 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6380 06 00WP2 45° equal & unequal elbow	6 mm	6 mm	11	39	21	25	14,5	€4.24	Available in 35 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6380 08 00WP2 45° equal & unequal elbow	8 mm	8 mm	13,5	44	21,5	25,5	19,5	€4.45	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6380 10 00WP2 45° equal & unequal elbow	10 mm	10 mm	16	53	27	32,5	23	€6.52	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6380 12 00WP2 45° equal & unequal elbow	12 mm	12 mm	19	58	27	34	26	€7.51	Available in 45 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "6380 - 45° equal elbows LIQUIfit®"

Connection of tubing at a 45° angle to a threaded port.
Useful on pneumatic control valves or cylinders equipped with cartridges.
compact.
solid construction, aesthetic and unobtrusive for a better connection.
Full air flow.
100% leak-tested in production
LIQUIfit connection systems are KTW - W270 - NSF and FDA certified.

Material:	Biobased raw materials
RoHS compliant:	Yes
Material seal:	EPDM
Material body:	Biobased raw materials
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
