6316 - Bulkhead connectors LIQUIfit®
From €5.13 *
Available, delivery time:

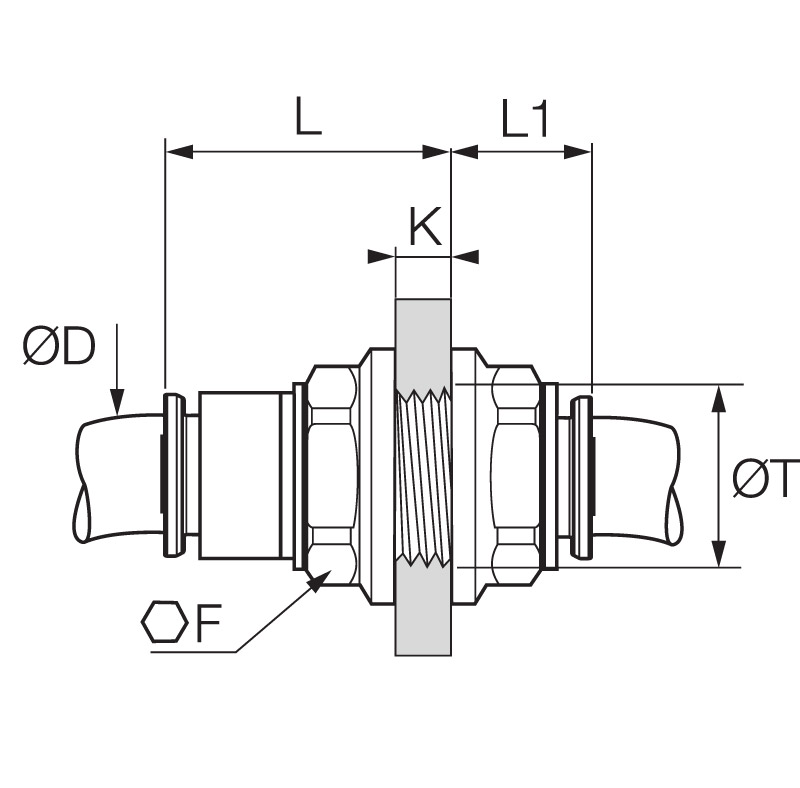

| Product name | ØD | F | K max | L | L1 | T min | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
| 6316 04 00WP2 Straight bulkhead connector | 4 mm | 13 | 5,5 | 15,5 | 10,5 | 10,5 | €5.13 | Available in 20 days, transport time 1-2 working days | |
| 6316 06 00WP2 Straight bulkhead connector | 6 mm | 15 | 8,5 | 20 | 10 | 12,5 | €6.09 | Available in 5 days, transport time 1-2 working days | |
| 6316 08 00WP2 Straight bulkhead connector | 8 mm | 18 | 14,5 | 27 | 10,5 | 15,5 | €6.25 | Available in 10 days, transport time 1-2 working days | |
| 6316 10 00WP2 Straight bulkhead connector | 10 mm | 22 | 14,5 | 30 | 13 | 18,5 | €11.21 | Available, delivery time: 1-2 working days | |
| 6316 12 00WP2 Straight bulkhead connector | 12 mm | 26 | 18,5 | 35 | 15,5 | 22,5 | €12.21 | Available in 20 days, transport time 1-2 working days | |
| 6316 56 00WP2 Straight bulkhead connector | 1/4" | 15 | 8,5 | 20 | 10 | 12,5 | €6.47 | Available, delivery time: 1-2 working days | |
| 6316 60 00WP2 Straight bulkhead connector | 3/8" | 22 | 14,5 | 29,5 | 12,5 | 18,5 | €10.28 | Available in 35 days, transport time 1-2 working days | |
| 6316 62 00WP2 Straight bulkhead connector | 1/2" | 29 | 20,5 | 40,5 | 17 | 25,5 | €11.64 | Available in 45 days, transport time 1-2 working days |
Product information "6316 - Bulkhead connectors LIQUIfit®"
Connects 2 tubes through a panel, providing optimum sealing between the fitting and the panel.
Solid construction, compact, aesthetic and unobtrusive for better connection. Full air flow.
100% leak-tested in production
LIQUIfit connection systems are KTW - W270 - NSF and FDA certified.
| Material: | Biobased raw materials |
|---|---|
| max. temperature in °C: | 40 |
| min. temperature in °C: | -10 |
| RoHS compliant: | Yes |
| Material seal: | EPDM |
| Material body: | Biobased raw materials |
| Material stem: | Biobased raw materials |
| Material toothed washer: | Stainless steel |
